Step-by-Step Guide on How to Perform OTDR Testing

In this comprehensive guide, we will walk you through the process of performing OTDR testing to analyze and troubleshoot your fiber optic network. So, without further ado, let's dive in!

What is an OTDR?

Before we delve into the step-by-step guide, let's understand what an OTDR is and why it is an invaluable tool for network professionals. An Optical Time Domain Reflectometer (OTDR) is a specialized device used for characterizing and troubleshooting fiber optic networks.

Think of an OTDR as a "radar" for fiber optics. It sends out short pulses of light into a fiber and measures the time it takes for the light to reflect back. By analyzing these reflections, known as "backscattering," an OTDR can determine the fibers' losses, identify any faults or breaks, and even estimate the distance to these events.

The Step-by-Step Guide to OTDR Testing

Step 1: Prepare Your OTDR and Fiber Optic Network

Before starting the testing process, ensure that your OTDR is properly calibrated and its firmware is up to date. Next, prepare the fiber optic cable for testing by cleaning the connectors, inspecting for any visible damage, and ensuring there are no severe bends or kinks that could affect the test results.

Step 2: Set Up the OTDR

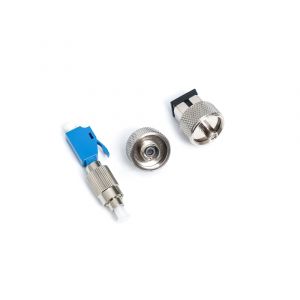

Connect the OTDR to the fiber optic cable under test, ensuring a clean and secure connection. Configure the OTDR settings according to your testing requirements, such as selecting the appropriate pulse width, averaging, and distance range.

Step 3: Launch the OTDR Test

Once the setup is complete, initiate the OTDR test by selecting the desired test parameters and launching the measurement. The OTDR will now start sending short pulses of light into the fiber and analyzing the backscattered signals.

Step 4: Analyze the OTDR Trace

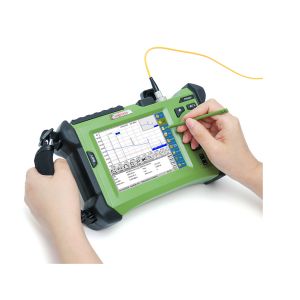

After the test is complete, the OTDR will generate a trace that represents the fiber's characteristics and any events or reflections. Analyze the trace carefully, paying attention to the following key details:

  • Fiber Loss: Identify the regions where the fiber experiences significant signal loss, indicating potential issues.
  • Splices: Look for sudden changes in the trace that represent fiber splices or connectors. These can affect signal quality.
  • Connector Reflections: High-intensity reflections from connectors can cause signal degradation. Identify and address any excessive reflections.
  • Fiber Breaks or Bends: Locate any sharp dips or disruptions in the trace, indicating breaks or severe bends that require attention.
  • Event Distance: Measure the physical distance between different events or anomalies in the trace, helping identify their exact location.

Step 5: Troubleshoot and Address Issues

Based on the analysis of the OTDR trace, it's time to troubleshoot and address any issues found. Depending on the specific problem, you may need to re-splice connectors, replace damaged fibers, or address any bends or breaks in the cables.

The Advantages of OTDR Testing

Now that we've covered the step-by-step process, let's highlight some of the key advantages and takeaways of using OTDR testing:

      • Precision: OTDR testing provides accurate and precise measurements, enabling technicians to pinpoint faults and troubleshoot efficiently.

      • Cost and Time Savings: By quickly identifying issues, OTDR testing helps reduce network downtime, minimizing operational costs and improving overall productivity.

      • Optimization: OTDR testing allows for the optimization of fiber networks by identifying areas of high loss, enabling proactive maintenance and enhancements.

      • Documentation: The detailed reports generated by OTDRs serve as valuable documentation for future reference, network audits, and compliance purposes.

Key Takeaways

Performing OTDR testing is an essential step in maintaining the performance and reliability of fiber optic networks. Remember the following key takeaways:

      • Prepare your OTDR and fiber optic network before initiating the testing process.

      • Set up the OTDR correctly, ensuring proper connections and configuration.

      • Launch the OTDR test and carefully analyze the generated trace.

      • Troubleshoot and address any issues found based on the OTDR analysis.

      • Enjoy the advantages of OTDR testing, including precision, cost savings, optimization, and documentation.

By following this step-by-step guide, you'll be well-equipped to perform OTDR testing and ensure the utmost performance and reliability of your fiber optic network. Happy testing!

Components and Working Principles of an OTDR

The Components of an OTDR

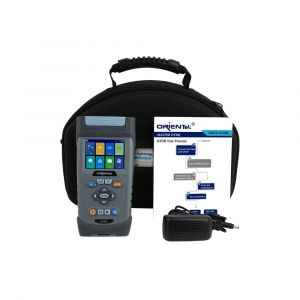

An OTDR is a handheld device that uses the principles of light scattering and reflection to measure the characteristics of fiber optic cables. It consists of several key components, each playing a vital role in its functioning:

      • Laser Diode: The laser diode acts as the light source in an OTDR. It emits high-intensity light pulses that travel through the fiber optic cable.

      • Optical Splitter: This component splits the light generated by the laser diode into two paths: one for transmitting into the fiber optic cable and the other for reference.

      • Photodiode: The photodiode is responsible for converting the received optical signals into electrical signals, allowing for further analysis and processing.

      • Time Measurement Unit: The time measurement unit precisely determines the time it takes for the light pulses to travel through the fiber optic cable and back, enabling distance calculations.

Additionally, an OTDR often includes a user interface, display screen, and data storage capabilities for easy analysis and reporting of test results.

The Working Principles of an OTDR

The OTDR operates based on the principle of backscattering of light. It emits a series of laser pulses into the fiber optic cable and measures the intensity of the reflected light at different points along the cable. This backscattered light provides valuable insights into the characteristics of the cable and any discontinuities or faults present.

The key steps involved in the working of an OTDR are as follows:

      • The OTDR emits a laser pulse into the fiber optic cable under test.

      • The emitted pulse travels through the cable, encountering various elements such as connectors, splices, and fiber characteristics.

      • As the pulse encounters these elements, it gets partially reflected and scattered back towards the OTDR.

      • The OTDR's photodiode receives the reflected light and converts it into an electrical signal.

      • This electrical signal is then analyzed by the OTDR's internal circuitry, which determines the intensity and time delay of the reflected signal.

      • Using the time delay and the speed of light as a constant, the OTDR calculates the distance to the detected event or fault.

      • All the collected data is processed, analyzed, and displayed on the OTDR's screen for further interpretation and troubleshooting.

Advantages and Key Takeaways

Understanding the key advantages and takeaways of using an OTDR can help telecom engineers and network technicians make the most of this powerful tool. Here are the main benefits:

      • Accurate Fault Location: OTDR provides precise fault location information, enabling quick identification and resolution of cable faults, minimizing downtime.

      • Characterizing Network Components: By measuring the loss and reflectance of connectors and splices, OTDR aids in optimizing network performance and ensuring high-quality connections.

      • Verified Cable Installations: With OTDR, technicians can verify the quality and integrity of fiber optic cable installations, avoiding potential issues in the long run.

      • Quick Network Diagnostics: OTDR's fast and efficient testing capabilities allow for rapid identification of network anomalies, helping engineers troubleshoot issues promptly.

In summary, an OTDR is an essential tool for network testing and troubleshooting in the fiber optic industry. Its components work together to emit laser pulses, analyze reflected light, and calculate distance, enabling accurate fault location and characterization of network components. By incorporating an OTDR into their workflow, engineers and technicians can ensure reliable and high-performance fiber optic networks.

What is OTDR Testing and Why is it Important?

That's where Optical Time Domain Reflectometer (OTDR) testing comes into play. OTDR testing is a vital tool used by network technicians and engineers to analyze and maintain the integrity of fiber optic cables. By providing valuable insights into fiber optic networks, OTDR testing plays a crucial role in the efficient operation of communication systems.

The Basics of OTDR Testing

OTDR testing, as the name suggests, is performed using an optical time domain reflectometer. This device emits a short, intense pulse of light into fiber optic cables and measures the light reflected back. Based on the time it takes for the light to return and the strength of the reflected signal, the OTDR can determine the distance to any point of damage or loss within the fiber optic cable. This data is then displayed graphically on a screen, allowing technicians to analyze and troubleshoot any issues effectively.

The Importance of OTDR Testing

Now that we understand the basics of OTDR testing, let's delve into why it is so important. Here are some key reasons:

      • Identifying Cable Faults: OTDR testing enables technicians to quickly and accurately identify and locate faults such as breaks, bends, or other issues within the fiber optic cables. By pinpointing the exact location, repairs can be made promptly, minimizing downtime and optimizing network performance.

      • Assessing Signal Strength: Understanding the strength of the signals transmitted through the network is crucial for maintaining smooth communication and preventing data loss. OTDR testing provides comprehensive information about signal attenuation, enabling technicians to identify weak points and take appropriate corrective measures.

      • Evaluating Fiber Quality: With OTDR testing, technicians can assess the quality of fibers used in the network infrastructure. This allows them to ensure that the cables meet industry standards and specifications, minimizing the risk of signal degradation and ensuring the delivery of high-quality services.

      • Verifying Installation: During the installation of fiber optic cables, OTDR testing plays a critical role in verifying the correctness and integrity of the connections. By verifying the installation, technicians can be confident that the cables are properly terminated, reducing the likelihood of future issues.

The Advantages of OTDR Testing

Now that we have explored the importance of OTDR testing, let's take a closer look at some of its distinct advantages:

      • Accurate Fault Localization: OTDR testing provides technicians with accurate distance-to-fault measurements, making it easier to identify and locate cable faults quickly. This saves valuable time during repairs and reduces unnecessary disruptions to the network.

      • Data Interpretation: The graphical output generated by OTDR testing allows technicians to interpret the data effectively. By analyzing the traces, they can identify where the faults or losses occur, measure signal strength, and assess any inconsistencies in the fiber optic cables.

      • Efficient Troubleshooting: OTDR testing speeds up the troubleshooting process by providing a comprehensive overview of the fiber optic network. Technicians can identify potential issues, such as attenuation or dispersion, and take appropriate actions to restore network performance efficiently.

      • Preventive Maintenance: By regularly conducting OTDR testing, technicians can proactively detect and address potential issues before they escalate into major problems. This preventive maintenance approach helps minimize network downtime and ensures optimal performance.

Key Takeaways

As communication networks become increasingly critical for businesses and individuals alike, the importance of OTDR testing cannot be overstated. Here are the key takeaways:

      • OTDR testing is crucial for identifying cable faults and locating their exact positions, reducing downtime and optimizing network performance.

      • It allows technicians to assess signal strength, ensuring smooth communication and preventing data loss.

      • OTDR testing helps evaluate fiber quality, ensuring adherence to industry standards and specifications.

      • Technicians can verify proper installation of fiber optic cables, minimizing future issues.

      • OTDR testing offers advantages such as accurate fault localization, efficient troubleshooting, and preventive maintenance.

By leveraging the power of OTDR testing, organizations can maintain reliable communication networks, enhance customer satisfaction, and stay ahead in the ever-evolving technological landscape.

Troubleshooting Common Issues with OTDR Testing

In this article, we will explore some common problems encountered during OTDR testing and provide useful tips to overcome them.

Inaccurate Measurements

One of the most common challenges faced in OTDR testing is obtaining accurate measurements. This can be attributed to several factors:

      • Launch Fiber Length: The launch fiber used to connect the OTDR to the network under test should have an appropriate length in order to obtain accurate reflections. A common rule of thumb is to use a fiber length equivalent to 10% of the link's distance.

      • Ghosts and Fresnel Reflections: Ghosts and Fresnel reflections can interfere with the accuracy of measurements. Ensuring proper cleaning of connectors and using quality couplers can mitigate these issues.

      • Event and Non-Event Dead Zones: Dead zones can result in missing or inaccurate measurements. Understanding the OTDR's specified dead zones and positioning the launch fiber accordingly can reduce the impact of dead zones on results.

Understanding Fiber Bending Loss

Fiber bending loss occurs when the fiber is bent in a way that exceeds its bend radius. This can lead to signal loss and impact network performance. Understanding the bend radius of the fiber being tested and avoiding excessive bending during OTDR testing is crucial.

      • Bend Radius: Each fiber type has a specified minimum bend radius that must be adhered to. Overbending the fiber can lead to permanent damage, affecting signal quality and causing connectivity issues. Ensure you are aware of the bend radius requirements.

      • Fiber Spooling: When conducting OTDR testing, ensure the fiber being tested is not spooled too tightly, as this can cause excessive bending and result in inaccurate measurements.

Equipment Calibration and Settings

Regular calibration of OTDR equipment is essential to maintain measurement accuracy. Additionally, proper settings need to be configured to suit the specific testing requirements. Here are a few key considerations:

      • Calibration: Consult the manufacturer's guidelines and industry standards to understand calibration procedures and frequency. Regularly calibrate your OTDR equipment to ensure accurate measurements.

      • Trace Averaging: Utilizing trace averaging can help reduce noise and fluctuations in OTDR measurements, leading to more reliable results.

      • Pulse Width and Range: Adjusting the pulse width and range settings based on the length of the fiber being tested can improve accuracy. Larger pulse widths are suitable for longer fibers, while shorter fibers require smaller pulse widths.

Interpreting OTDR Traces

Interpreting OTDR traces correctly is crucial for effective troubleshooting and fault detection. Here are a few important factors to consider:

      • Understanding OTDR Events: Different events, such as connectors, splices, and fiber breaks, exhibit varying signature patterns on OTDR traces. Familiarize yourself with these patterns to identify and troubleshoot issues more accurately.

      • Optical Loss: The slope of the OTDR trace indicates the optical loss along the fiber. Understanding the relationship between slope and loss can help determine the root cause of performance degradation.

      • Distance and Time Scales: Accurate interpretation requires proper scaling. Adjust the distance scale and time scale parameters to view the trace clearly and focus on specific events or areas of interest.

Key Takeaways

OTDR testing is a crucial process in maintaining and troubleshooting fiber optic networks. Overcoming common issues encountered during OTDR testing includes ensuring accurate measurements, understanding fiber bending loss, proper equipment calibration, and interpreting OTDR traces correctly. Key takeaways from this article include:

      • Accurate measurements rely on appropriate launch fiber lengths, absence of ghosts and Fresnel reflections, and consideration of event and non-event dead zones.

      • Understanding fiber bending loss and adhering to bend radius requirements is essential to avoid signal loss and network performance degradation.

      • Regular calibration of OTDR equipment and optimizing settings such as trace averaging, pulse width, and range contribute to accurate and reliable measurements.

      • Interpreting OTDR traces involves understanding event signature patterns, optical loss indication, and adjusting distance and time scales appropriately.

By following these troubleshooting tips and best practices, network technicians can ensure efficient and effective OTDR testing, enabling them to identify and resolve issues swiftly, minimizing downtime, and ultimately providing reliable and high-performing fiber optic networks.

Key Features and Factors to Consider When Selecting an OTDR

This is where Optical Time-Domain Reflectometers (OTDRs) come into play. In this article, we will delve into the key features and factors one should consider when selecting an OTDR for their network infrastructure testing needs.

What is an OTDR?

An OTDR, short for Optical Time-Domain Reflectometer, is a device used to characterize and troubleshoot fiber optic networks. It works by sending pulses of light into optical fibers and measuring the reflected or backscattered light to determine various properties of the fiber link, such as loss, attenuation, and length. By analyzing the reflected light signals, an OTDR can identify faults, such as breaks, bends, or splices, enabling technicians to precisely locate and rectify issues within the network.

Key Features of an OTDR

When selecting an OTDR for your network testing needs, several key features should be considered to ensure optimal performance and accuracy. Let's take a closer look at these features:

Pulse Width and Dynamic Range

The pulse width of an OTDR determines the device's ability to resolve closely spaced events along the fiber link. A shorter pulse width provides better spatial resolution but may sacrifice the dynamic range, which is the range of measurable signal levels. Finding the right balance between pulse width and dynamic range is crucial to accurately characterize both short and long fiber links.

Event Dead Zone

The event dead zone is the length of fiber immediately after an event, such as a connector or splice, where an OTDR cannot accurately measure the fiber's characteristics. A shorter event dead zone ensures accurate fault detection and diagnosis, especially in densely populated fiber environments.

Distance Range

The distance range refers to the maximum length of fiber that an OTDR can accurately measure. It is essential to consider both the minimum distance range for analyzing short links and the maximum distance range required for long-haul networks. Opting for an OTDR with a wider distance range allows for more flexibility in testing various fiber optic networks.

Sampling Resolution

Sampling resolution, also known as data point spacing, determines the number of measurement points within a given fiber length. A higher sampling resolution enhances the accuracy of event detection and fault localization, especially for short fiber links or networks where precise identification of events is critical.

Test Automation and Reporting Capabilities

Efficiency in network testing and troubleshooting is crucial to reduce downtime and ensure smooth operations. Look for an OTDR that offers test automation features, such as automated event detection and report generation. This helps streamline the testing process and provides comprehensive reports for analysis and documentation purposes.

Factors to Consider

Apart from the key features mentioned above, several factors should be considered when selecting an OTDR. These factors are essential to ensure the suitability of the OTDR for your specific network testing requirements. Some of the factors include:

      • Network Type: Consider the type of network you are testing, such as single-mode, multimode, or both. Ensure that the OTDR is compatible with the network type.

      • Connectivity Options: Check whether the OTDR supports various connector types commonly used in your network environment.

      • Portability: If you require field testing, consider the size, weight, and battery life of the OTDR to ensure ease of use and mobility.

      • Training and Support: Evaluate the availability and quality of training and technical support provided by the OTDR manufacturer.

Key Takeaways

Selecting the right OTDR is crucial for accurately characterizing and troubleshooting fiber optic networks. Here are the key takeaways to keep in mind when considering an OTDR:

      • Consider the pulse width and dynamic range to balance performance on short and long fiber links.

      • Check the event dead zone to ensure accurate fault detection and diagnosis.

      • Look for a suitable distance range for your specific network requirements.

      • Sampling resolution plays a role in precise event detection and fault localization.

      • Test automation and reporting capabilities streamline the testing process and enhance efficiency.

      • Consider network type, connectivity options, portability, and available training and support when selecting an OTDR.

By carefully considering the key features and factors mentioned in this article, you can make an informed decision when selecting an OTDR that meets your network testing needs. Remember, an OTDR is an investment in network performance and reliability, so choose wisely and ensure your network remains at the forefront of seamless communication in this digital age.
