OrienTek K350 OTDR Build-in OPM OLS VFL FIP, 1310/1550/1625nm Link Map OTDR, Active Live Fiber OTDR can 1:32 Splitters
- Buy 8 for $650.00 each and save 14%
1,Compact, rugged, lightweight/0.7kg
2, All new UI design with innovation
3, OTDR Self Calibration available
4, 1m short event dead zone & 32dB High dynamic range
5, Bult-in OPM、SLS、VFL、RJ45、FIP Modules
6, Best-in-Class Trace Analysis Software on PC
7, As our valued customers, we always offer 24/7 hours assistance in whole lifetime. We promise your purchase is entitled to a 30 days return at no cost from date of purchase for any reason.
OrienTek K350 Fiber MASTER OTDR
Performance ：
1, Much more than an OTDR， Built-in OPM/VFL/VLS/FIP/RJ45;
2, Characterize PON through up to 1:32 Splitters;
3, First-in-class OTDR Self calibration ;
4, 1m short event dead zone;
5, Link map and Pass/Fail judgement function;
6, Best-in-Class Trace Analysis Software on PC;
7, Dual wavelengths testing simultaneously;
8, 3-Year Warranty
9. Max. Distance ：140KM@1550nm, 89KM@1310nm
Description：
30 years of OTDR expertise has enabled us to make the K350 Access OTDR combine the industry’s leading OTDR technology with power meter,VFL,light source,RJ45 Test and fiber inpector functionalities in one powerful handheld unit. Optimized for testing passive optical networks (PON) within FTTx architectures, it offers several wavelength configurations and a wide range of options, for first-class flexibility. Use it at the optical network terminal (ONT), drop terminal or fiber distribution hub (FDH) for FTTH distribution (F2) fiber characterization, troubleshooting and fault locating.
Specifications
| Measuring wavelength | K350-S:1310/1550nm,K350-P: 1310/1550/1625 |
| Sensor Type | InGaAS |
| Calibration wavelength | 1310/1550nm; PON 1310/1550/1625 (built-in filter) |
| Data storage | 1000 waveforms, External storage: USB memory |

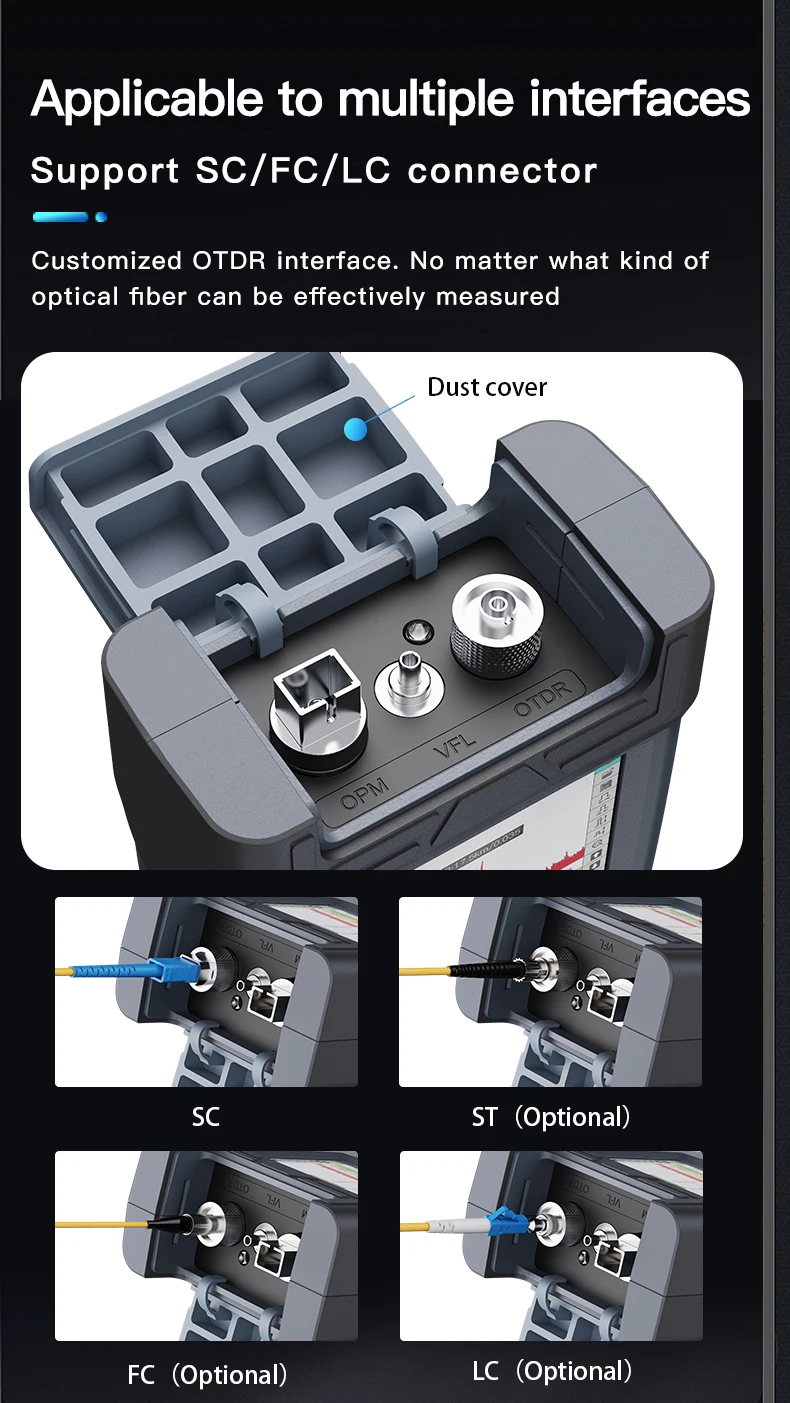

| Interface type | SC/UPC |
| Power supply | 3000mAh Li-battery |
| Dynamic range (dB) | 32/30; 32/30/28 |
| Distance measurement accuracy | ±(0.75 m + Measurement distance × 2 × 10−5 + Sampling resolution) |
| Loss measurement accuracy | ±0.03 dB/dB |
| Attenuation dead zone*2 (m) | 3.5 |
| Applicable fiber | SM (ITU-T G.652) |
