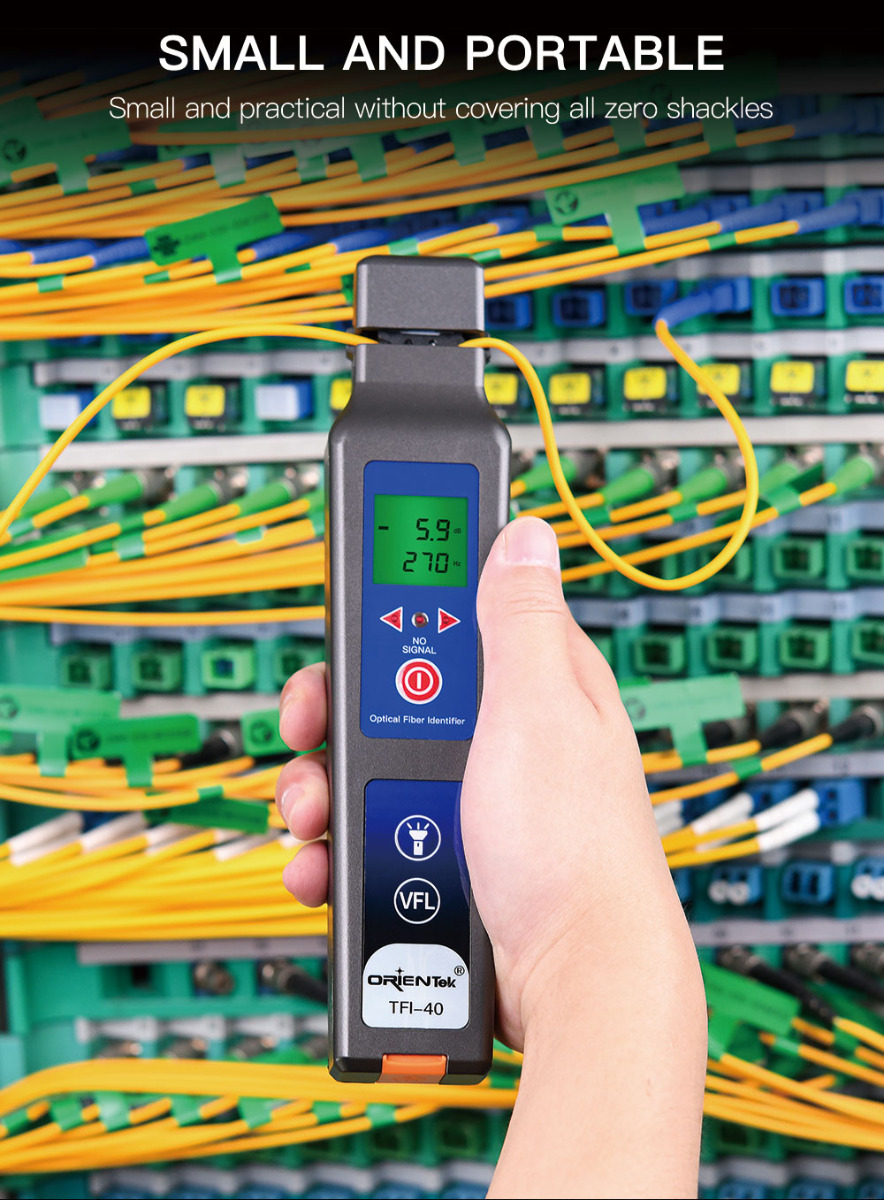

Orientek TFI-40 Optical Fiber Identifier with VFL, LED Live Fiber Identifier Detector 800-1700nm

In stock
SKU
TFI-40
Rating:
100% of 100
$89.00

● OFI suitable for 0.25/0.9/2.0/3.0mm

● Build-with VFL 3-5KM

● Build-with LED light

● Easy test directly, convenient and efficient.

● Small and Practical, No need to replace the chucks.

● Identifies dominant traffic direction, audible alarm.

● Approximate core power reading.

● Low false detection & inser-tion loss.









The TFI-40 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.

The Orientek TFI-40 optical fiber identifier also recognize the modulation like, 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated.



Model Number TFI-40
Wavelength Recognition Range 800nm to 1700nm
Signal Recognition Type CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%
Detector Type φ1mm InGaAs 2 pcs
Adapted fiber type Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable
Signal Direction Left & Right LED
Optical Power Reading Range -40 dBm to 10 dBm
Signal Frequency Range 270Hz,1kHz,2kHz
Power Type AA*2
Operating Temperature Range -10℃ to 60℃
Storage Temperature Range -25℃ to 70℃
Dimension 219mm*45mm*28mm
Weight 235g
VFL function
Power range 1mW
Testing distance 3-5km
Wavelength 650nm
Laser type LD
LED light Support
