ORIENTEK Optical Power Meter T25M & Optical Light Source T15M Mini Size FTTH Loss Test Tools
● OPM Wavelength: 850-1625nm -70~+10dBm
● OLS Wavelength: 1310/1550nm Output power：-5dB
● OPM OLS bulid in LED lighting
● Durable and reliable design
● Easy-to-use interface for er-ror-freetesting
● Rubber armor protection
● OPM Wavelength: 850-1625nm -70~+10dBm
● OLS Wavelength: 1310/1550nm Output power：-5dB
●OPM OLS bulid in LED lighting
● Durable and reliable design
● Easy-to-use interface for er-ror-freetesting
● Rubber armor protection

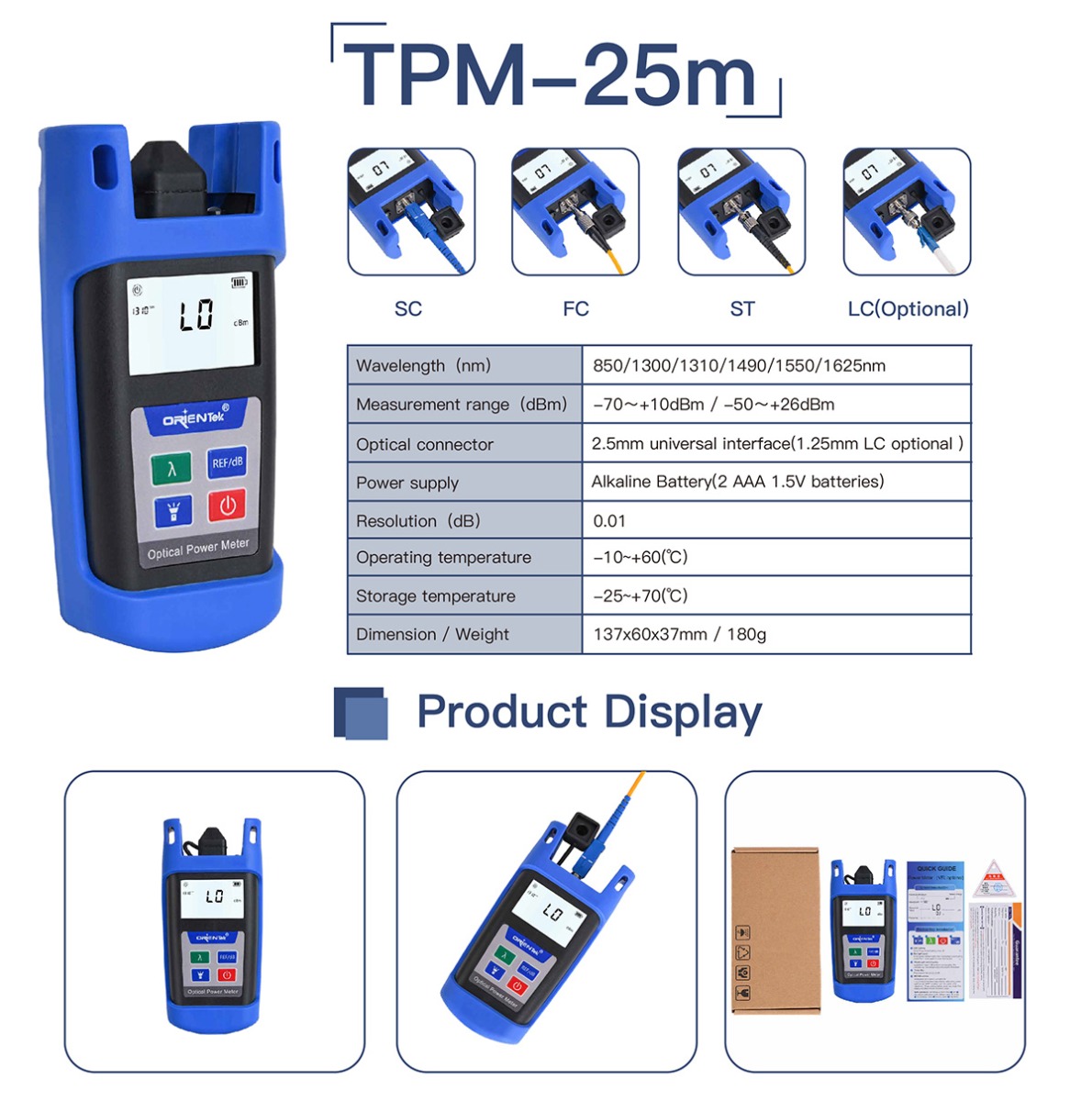

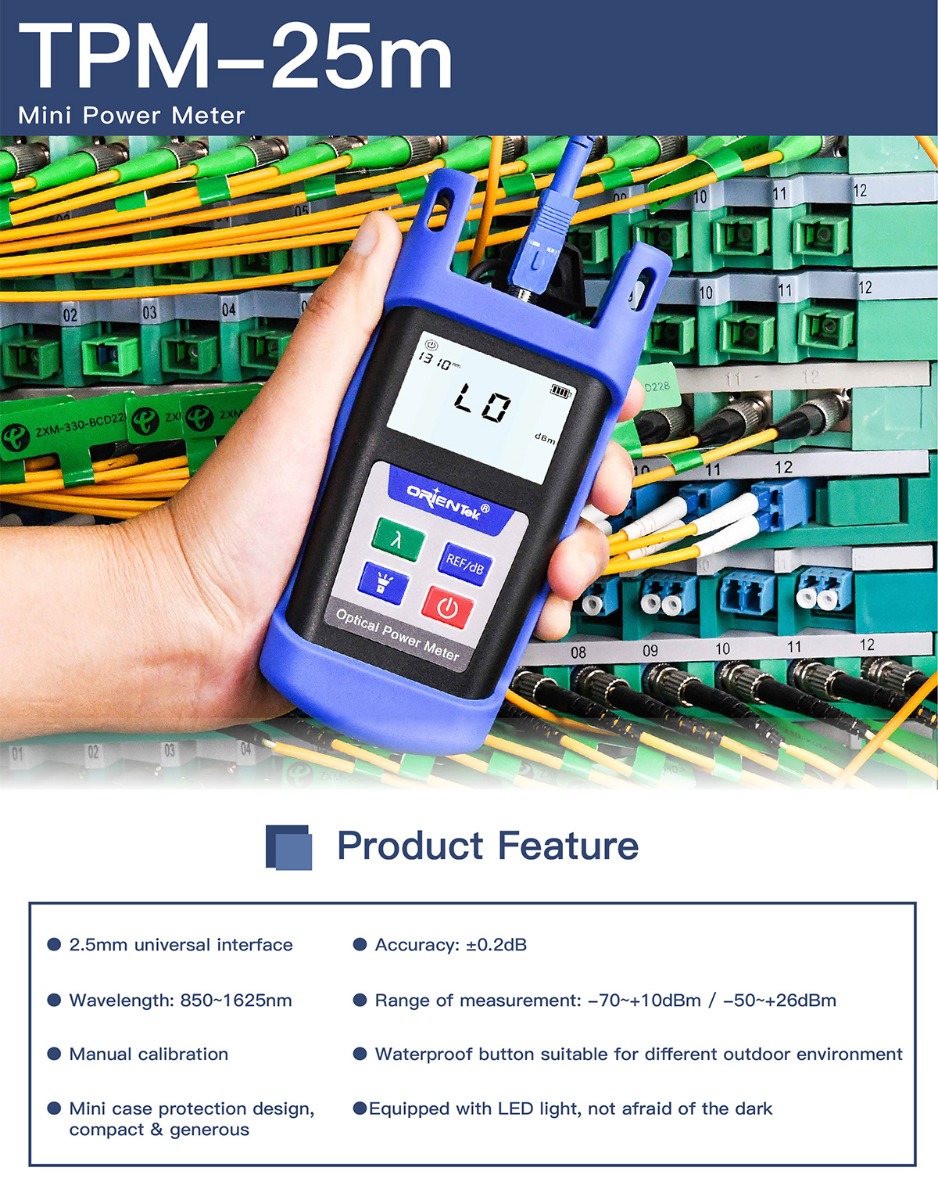

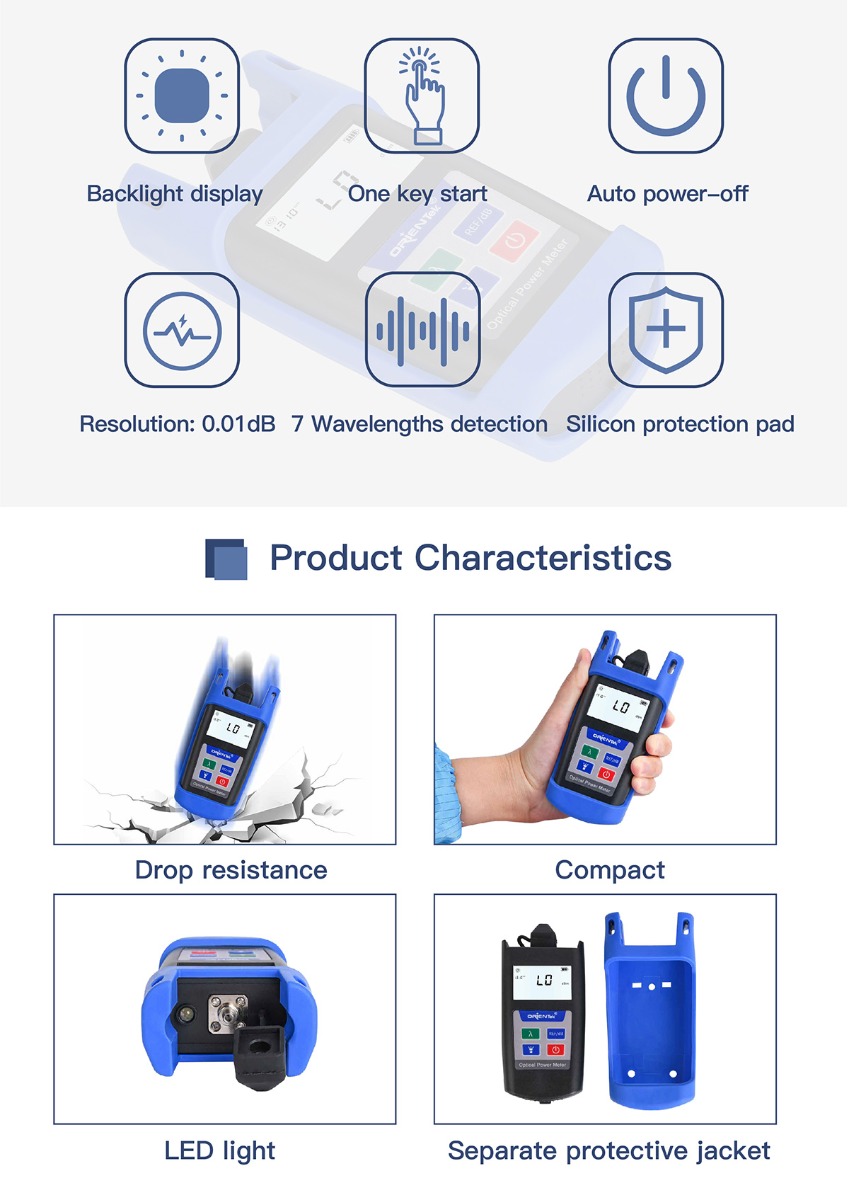

Optical power meter
|
Wavelengths(nm) |
850/980/1300/1310/1490/1550/1625(nm) |
|
Measurement Range |
-70~+10dBm |
|
Optical Connector |
2.5mm universal interface( 1.25mm LC optional) |
|
Power Supply |
Alkaline battery (3AA 1.5V battery) |
|
Resolution |
0.01dB |
|
Working Temperature |
-10~+60(°C) |
|
Storage Temperature |
-25~+70(°C) |
|
Dimensions/Weight |
160*85*45mm/220g |

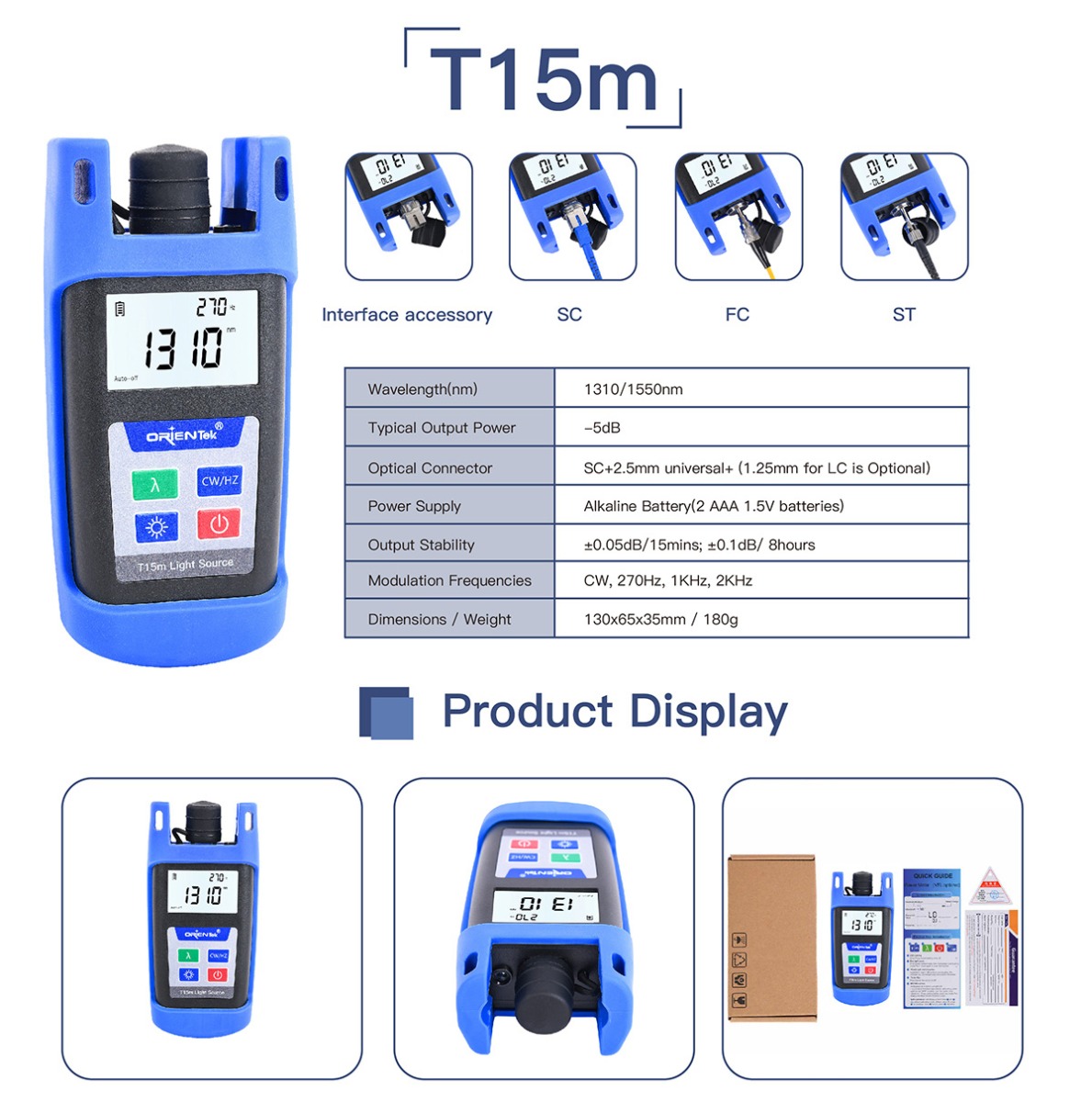

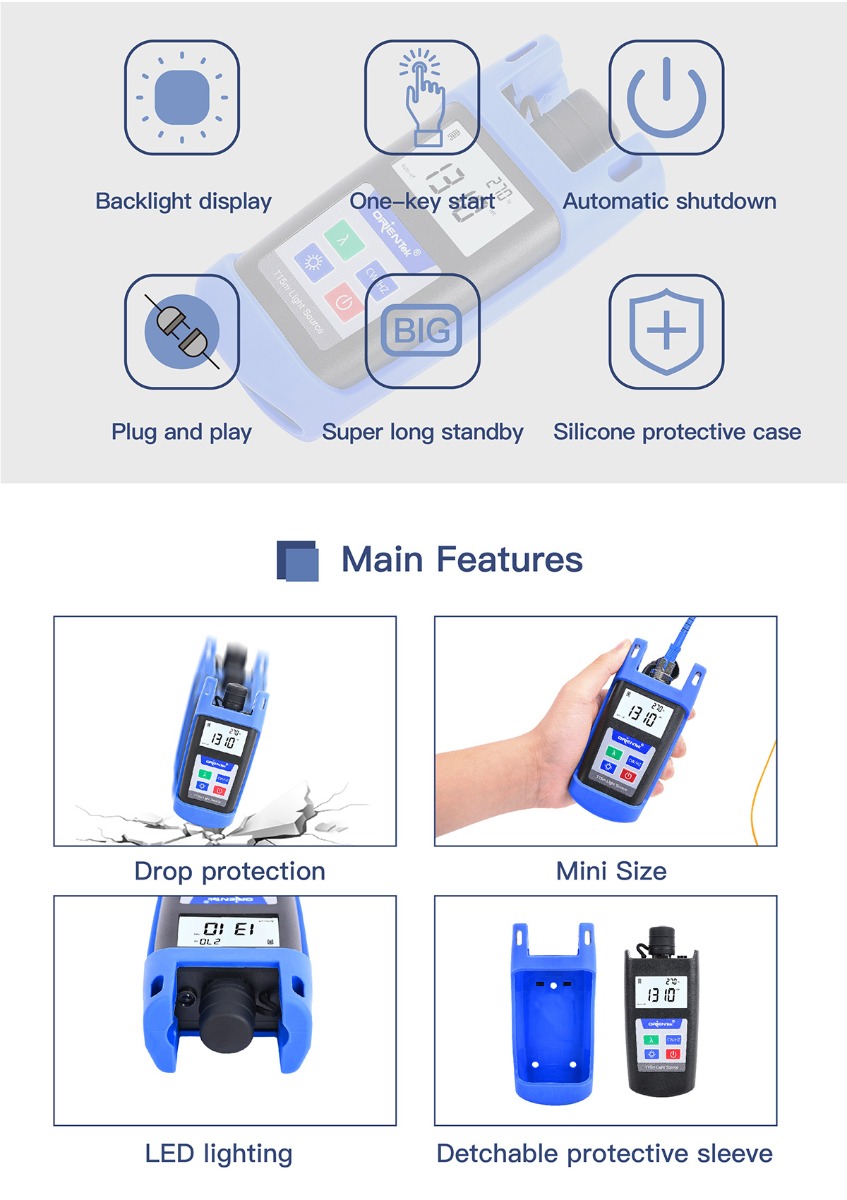

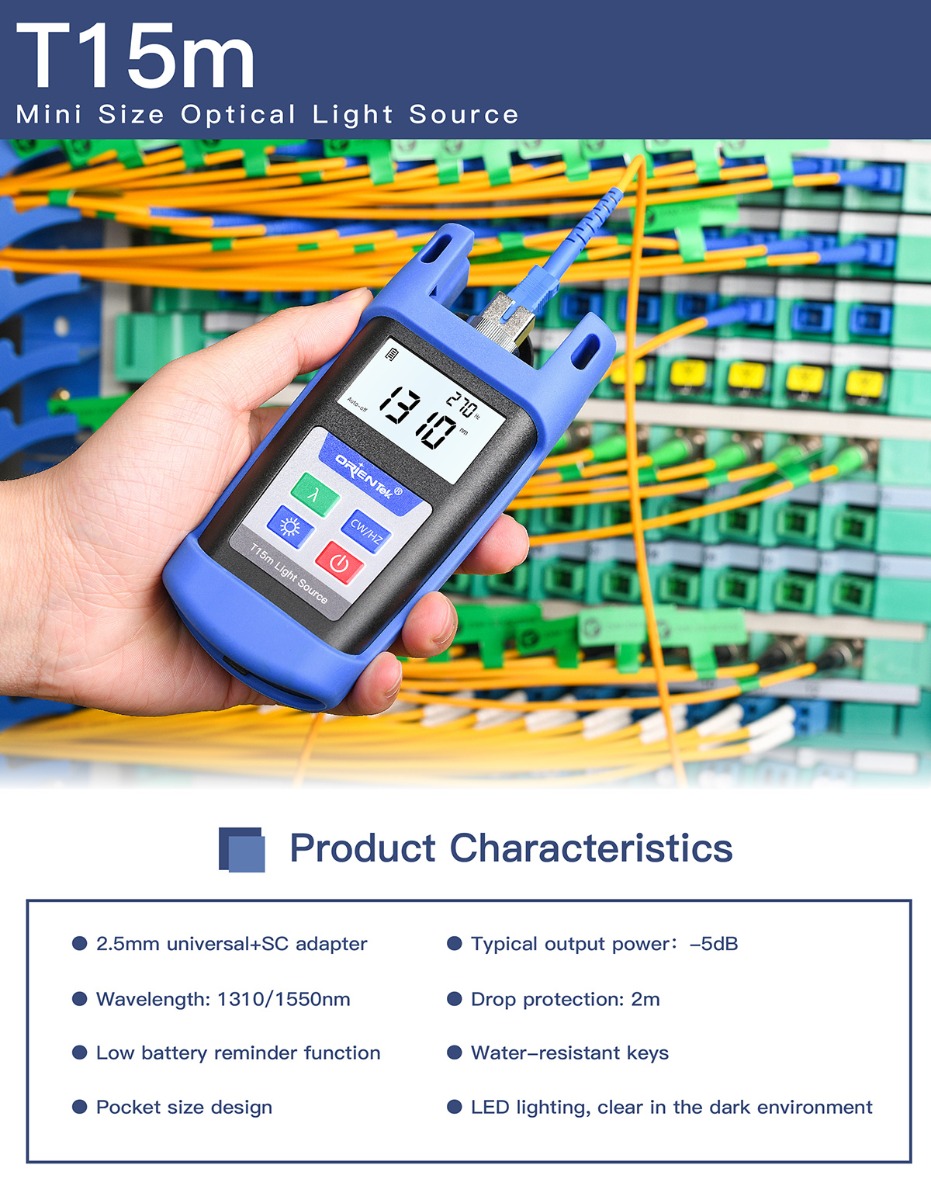

Optical light source
|
Wavelength(nm) |
1310/1550nm |
|
Typical Output Power |
-5dB |
|
Optical Connector |
2.5mm universal+SC (1.25mm for LC is Optional)） |
|
Power Supply |
Alkaline Battery(2 AAA 1.5V batteries) |
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|
Modulation Frequencies |
CW, 270Hz, 1KHz, 2KHz |
|
Dimensions / Weight |
130x65x35mm / 180g |
