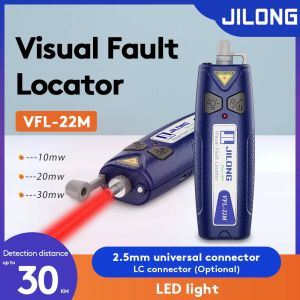

Orientek Mini Visual Fault Locator 10mw 20mw 30mw VFL Fiber Break Checker 650nm
● Bright red laser at 650nm
● Outpower: 1mw,10mw,20mw,30mw
● 2.5mm universal connector
● 7 hours of operation(1mW)
● Pulsed and CW operation
● Pocket size design
Specification:
|
Model |
TFL-Q-1 |
TFL-Q-10 |
TFL-Q-20 |
TFL-Q-30 |
|
Output Power |
1mW |
10mW |
20mW |
30mW |
|
Test Distance |
3-5km |
8-10km |
15-20km |
25-30km |
|
Working Hours |
7h |
5h |
4h |
2h |
|
Output Wavelength |
650nm |
|||
|
Laser Type |
LD |
|||
|
Modulation frequency |
CW / 2HZ | |||
|
Connector Type |
2.5mm universal for FC/SC/ST |
|||
|
Working Temperature |
-20~60℃ |
|||
|
LED light |
Yes |
|||
|
Battery |
AAA1.5V*2 |
|||
|
Weight |
61g |
|||
|
Shape Size |
93*46.5*21mm |
|||
