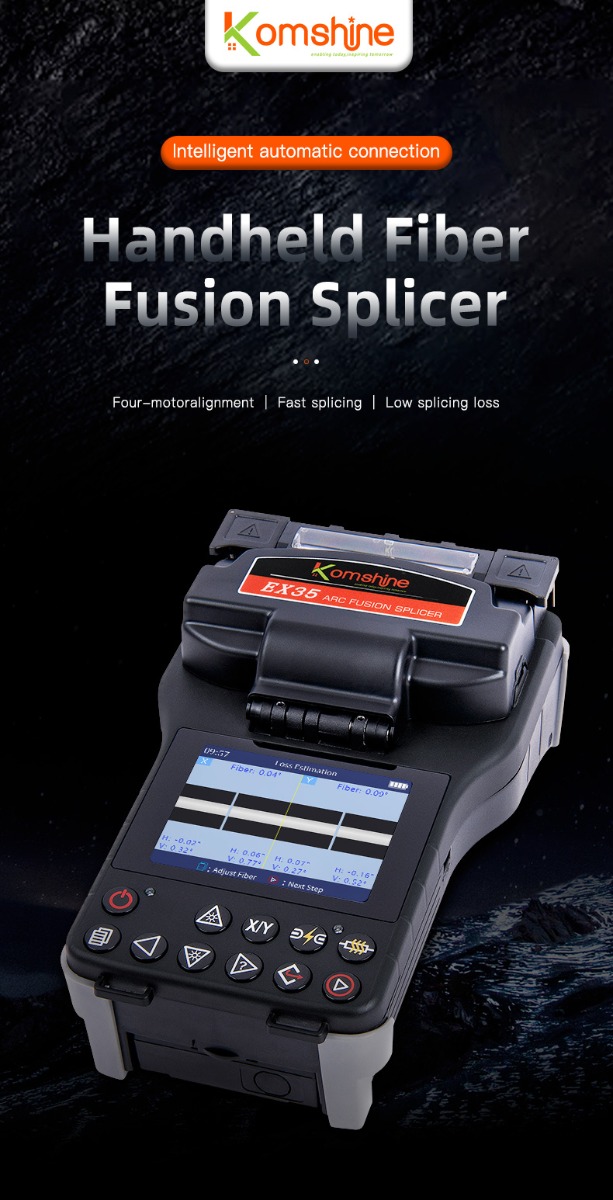

Komshine EX35 Fiber Fusion Splicer Mini Size Core-Core Alignment Fiber Splicing machine Fiber Splicer
Komshine EX-35 Fiber Fusion Splicer Mini Size Core-Core Alignment Fiber Splicing machine

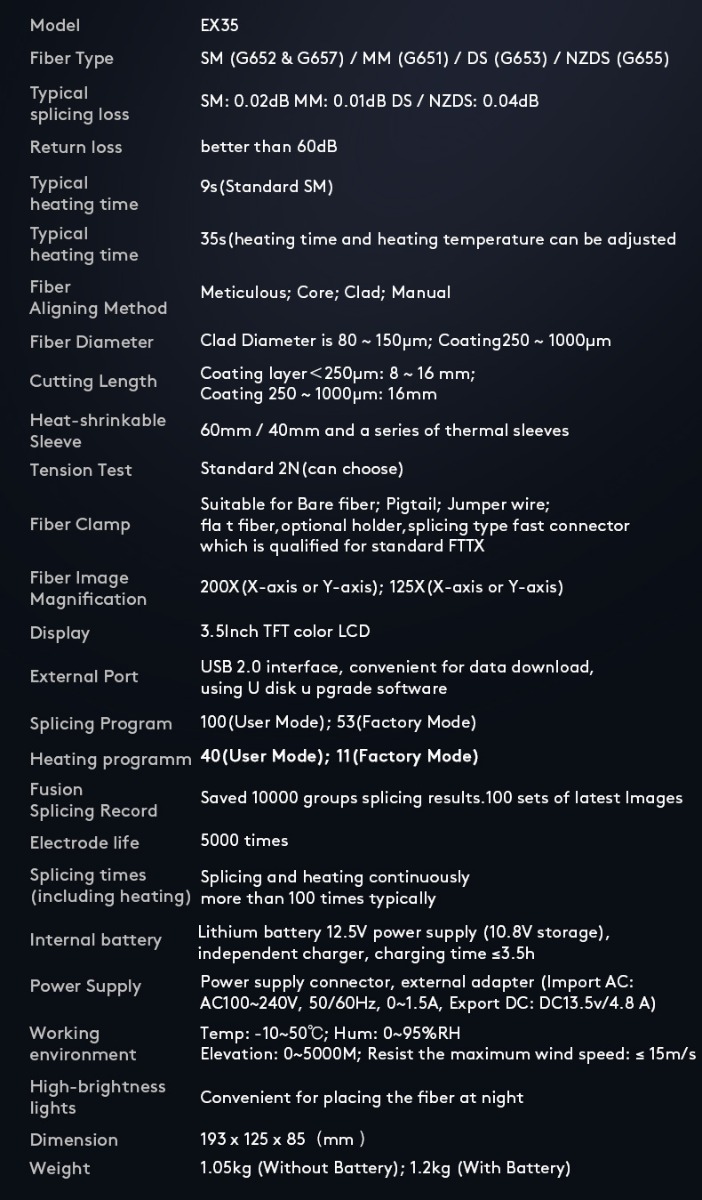

| Fiber Type | SM (G652 & G657) / MM (G651) / DS (G653) / NZDS (G655) |
| Typical splicing loss | SM: 0.02dB MM: 0.01dB DS / NZDS: 0.04dB |
| Return loss | better than 60dB |
| Typical heating time | 9s(Standard SM) |

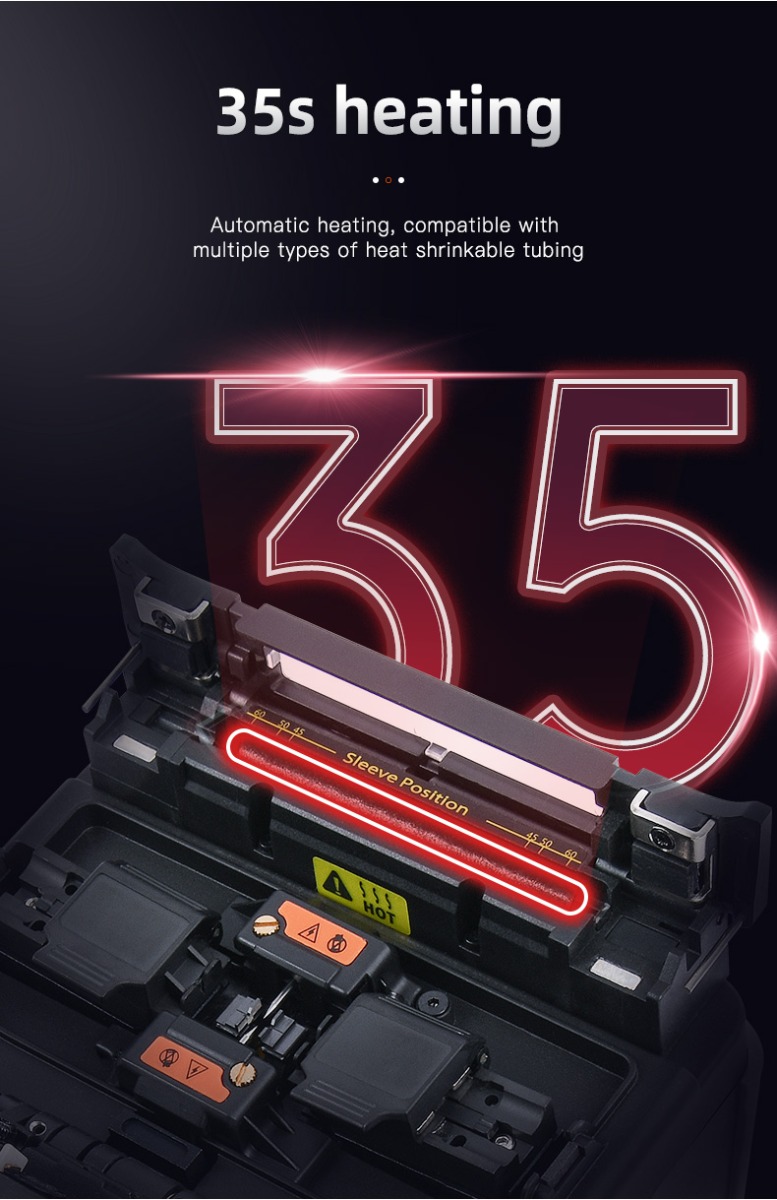

| Typical heating time | 35s(heating time and heating temperature can be adjusted |
| Fiber Aligning Method | Meticulous; Core; Clad; Manual |
| Fiber Diameter | Clad Diameter is 80 ~ 150μm; Coating250 ~ 1000μm |
| Cutting Length | Coating layer＜250μm: 8 ~ 16 mm; Coating 250 ~ 1000μm: 16mm |
| Heat-shrinkable Sleeve | 60mm / 40mm and a series of thermal sleeves |
| Tension Test | Standard 2N(can choose) |

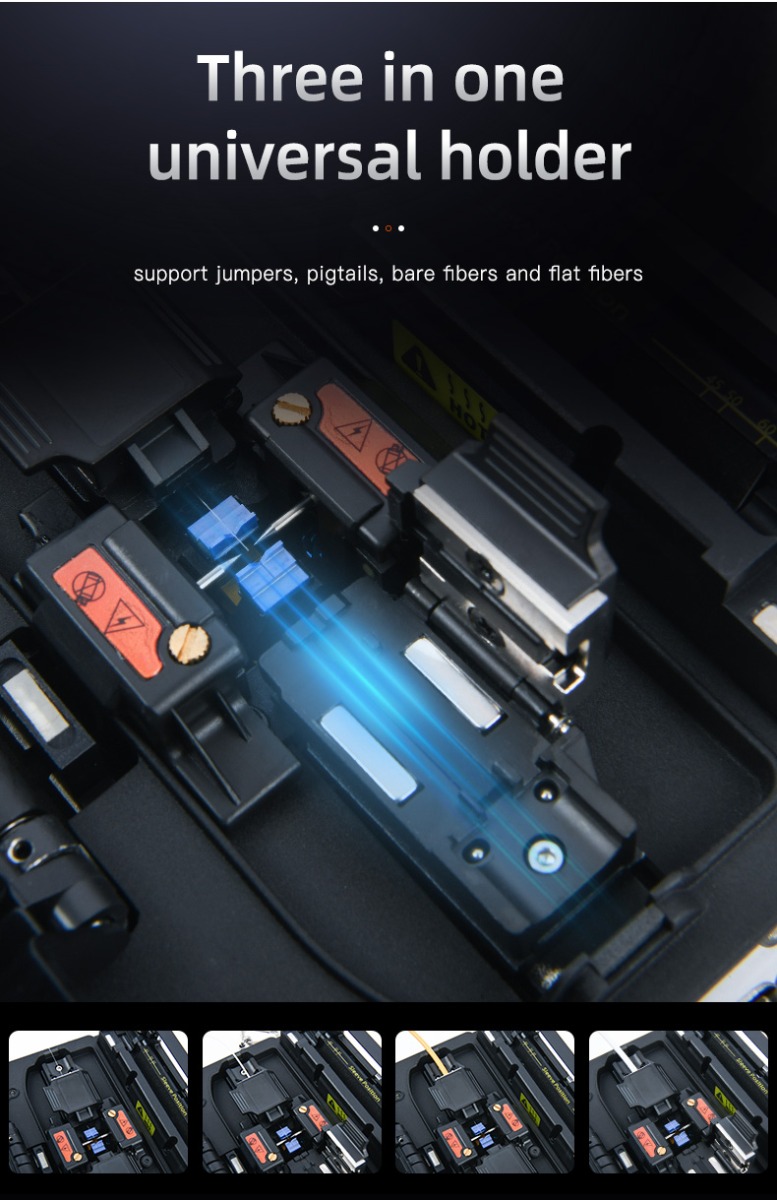

| Fiber Clamp | Suitable for Bare fiber; Pigtail; Jumper wire; flat fiber, |
| optional holder,splicing type fast connector which is qualified for standard FTTX | |
| Fiber Image | 200X(X-axis or Y-axis); 125X(X-axis or Y-axis) |
| Magnification | |

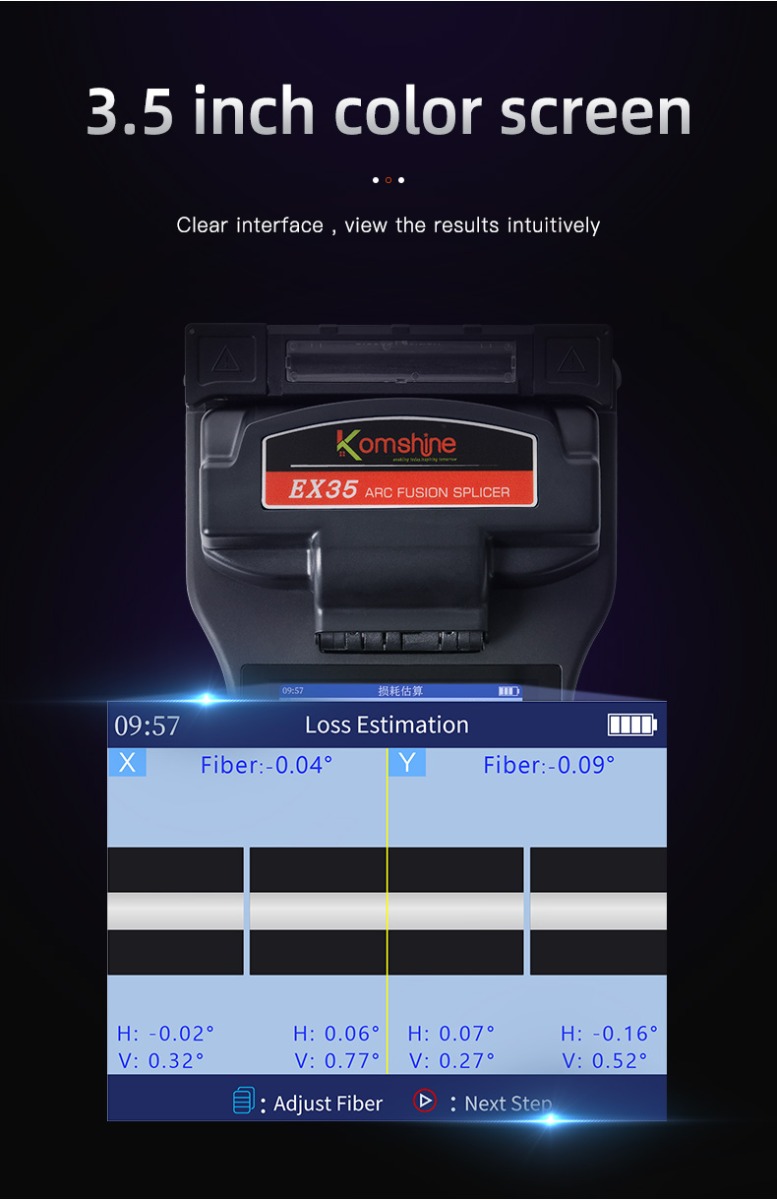

| Display | 3.5Inch TFT color LCD |
| External Port | USB 2.0 interface, convenient for data download, using U disk upgrade software |
| Splicing Program | 100(User Mode); 53(Factory Mode) |
| Heating programm | 40(User Mode); 11(Factory Mode) |
| Fusion Splicing Record | Saved 10000 groups splicing results.100 sets of latest Images |

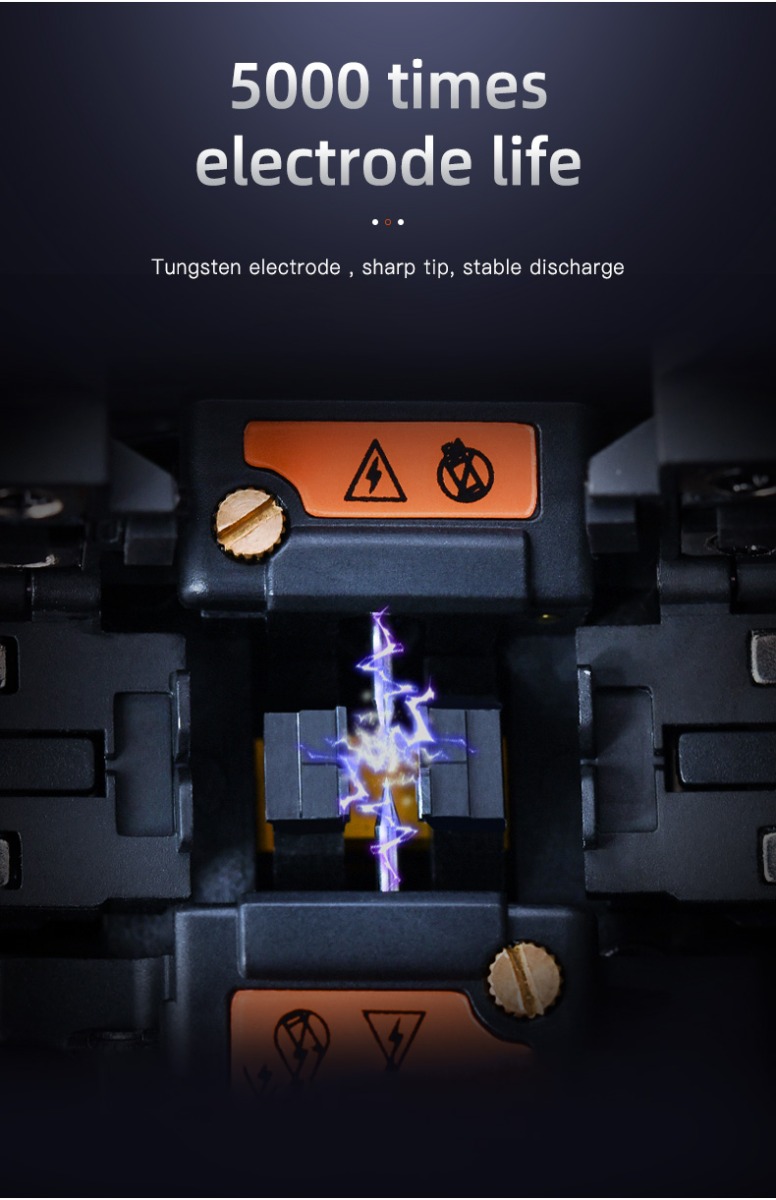

| Electrode life | 5000 times |
| splicing times | Splicing and heating continuously more than 100 times typically |
| (including heating) | |
| Internal battery | Lithium battery 12.5V power supply (10.8V storage), |
| independent charger, charging time ≤3.5h | |
| Power Supply | Power supply connector, external adapter |
| (Import AC: AC100~240V, 50/60Hz, 0~1.5A, Export DC: DC13.5v/4.8A) | |
| Temp: -10~50℃; Hum: 0~95%RH | |
| Working environment | Elevation: 0~5000M; Resist the maximum wind speed: ≤ 15m/s |
| High-brightness lights | Convenient for placing the fiber at night |
| Dimension | 193 x 125 x 85（mm） |
| Weight | 1.05kg (Without Battery); 1.2kg (With Battery) |
