EXFO MaxTester 730C PON/metro OTDR - TheFO.com

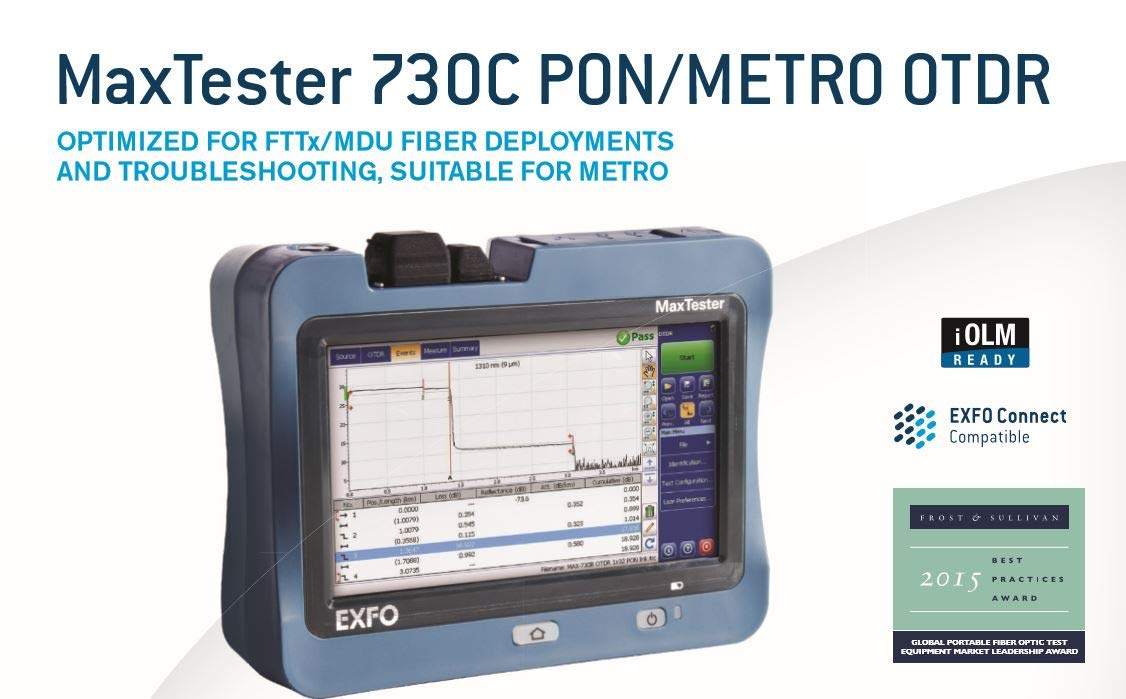

EXFO MaxTester 730C PON/metro OTDR

Out of stock
Only 0 left
SKU
MAX-730C-EN
$4,345.00

● Handy, lightweight, powerful, tablet-inspired design
● 7-inch, outdoor-enhanced touchscreen, biggest in the handheld industry
● 12-hour autonomy
● Rugged design built for outside plant

EXFO MAX-730C FTTx/PON SM OTDR 1310/1550nm 39/38dB OTDR Soft

EXFO MAX-730C is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation. This device is designed for testing through FTTH/PON splitters for end-to-end characterization, FTTH/PON testing, live fiber troubleshooting and metro range testing.
EXFO MAX-730C is iOLM-ready (iOLM – intelligent Optical Link Mapper, a dynamic application that turns complex OTDR trace analysis into a one-touch task).
Features
Handy, lightweight, powerful, tablet-like device
7-inch, outdoor-enhanced touchscreen
12-hour autonomous operation
Rugged design built for outdoor operation


Application
FTTx/PON testing though splitters
Access network testing (P2P)
Metro links testing (P2P)
Live fiber troubleshooting
Technical Specifications
Wavelength: 1310 ± 20 / 1550 ± 20 nm
Dynamic range: 39/38 dB
Event dead zone: 0.5 m
Attenuation dead zone: 2.5 m
Distance range: 0.1 – 400 km
Pulse width: 3 – 20 000 ns
Linearity: ±0.03 dB
Loss threshold: 0.01 dB
Loss resolution: 0.001 dB
Sampling resolution: 0.04 to 10 m
Sampling points: 256 000
Display: 7” inches (178 mm) touch screen 800 х 480 TFT
Storage: 2 GB internal memory, (approximately 20 000 reflexograms)
Batteries: Rechargeable lithium-polymer battery, 12 hours of operation
Interfaces: USB 2.0 – 2 pcs, RJ45 LAN 10/100 Mbits/s
Power supply: AC/DC adapter, input 100-240 VAC, 50-60 Hz
Dimensions: 166 x 200 x 68 mm
Weight: 1.5 kg
Package Contents
Optical Time Domain Reflectometer EXFO MAX-730C — 1 pc.
