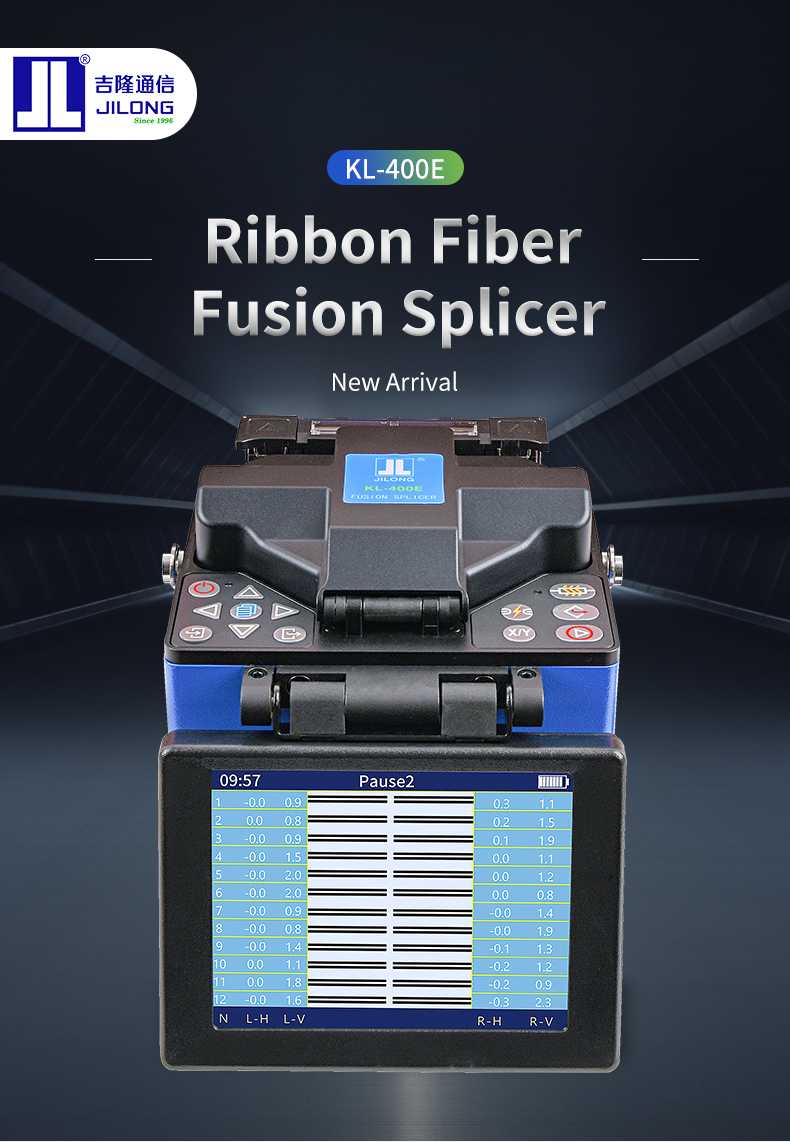

JILONG KL-400E Ribbon Fiber Fusion Splicer for Fiber 2/4/6/8/12 Core

In stock
SKU
KL-400E
$3,300.00

Buy KL-400E JILONG ribbon fusion splicer Kits Get 1 VFL Free

• Fixed V-groove (Clad to Clad)
• Single X or Y view and X & Y view simultaneously;
• Auto check quality of cleaved end face;
• Display fiber cleaved angle

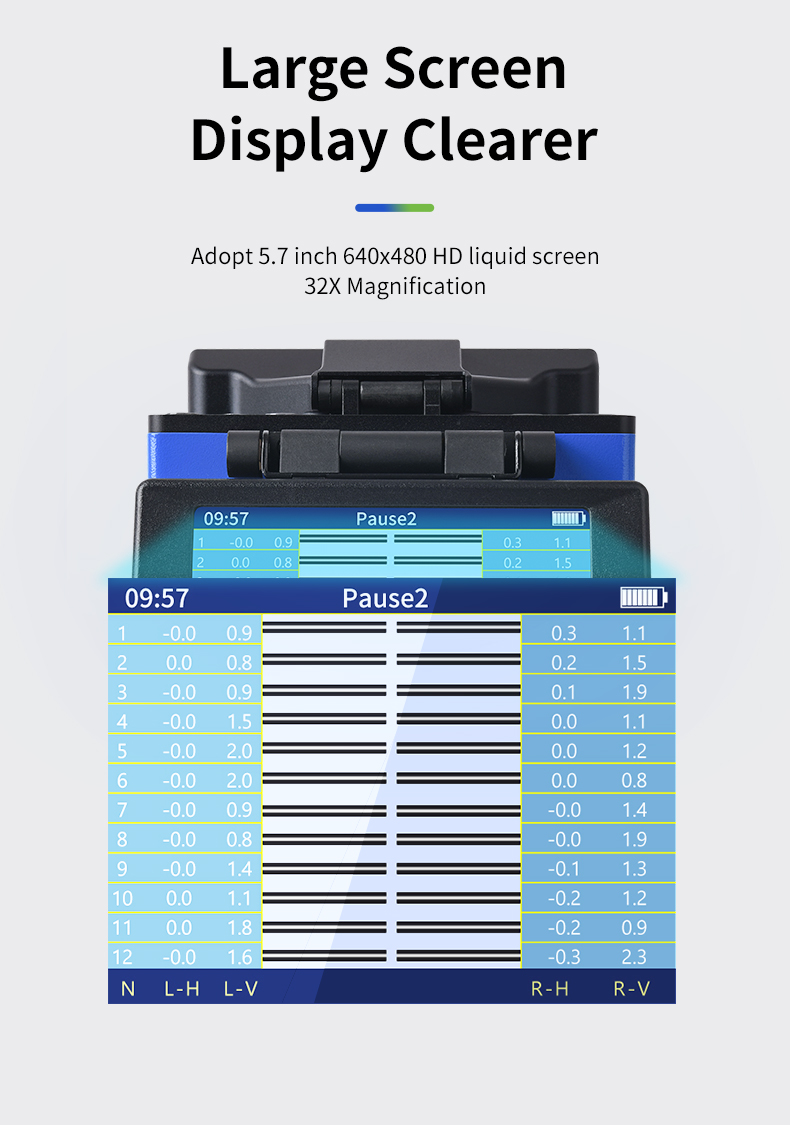

• 5.7 inch color LCD monitor with clear digital image display;
• Software upgrade via USB interface

Description:

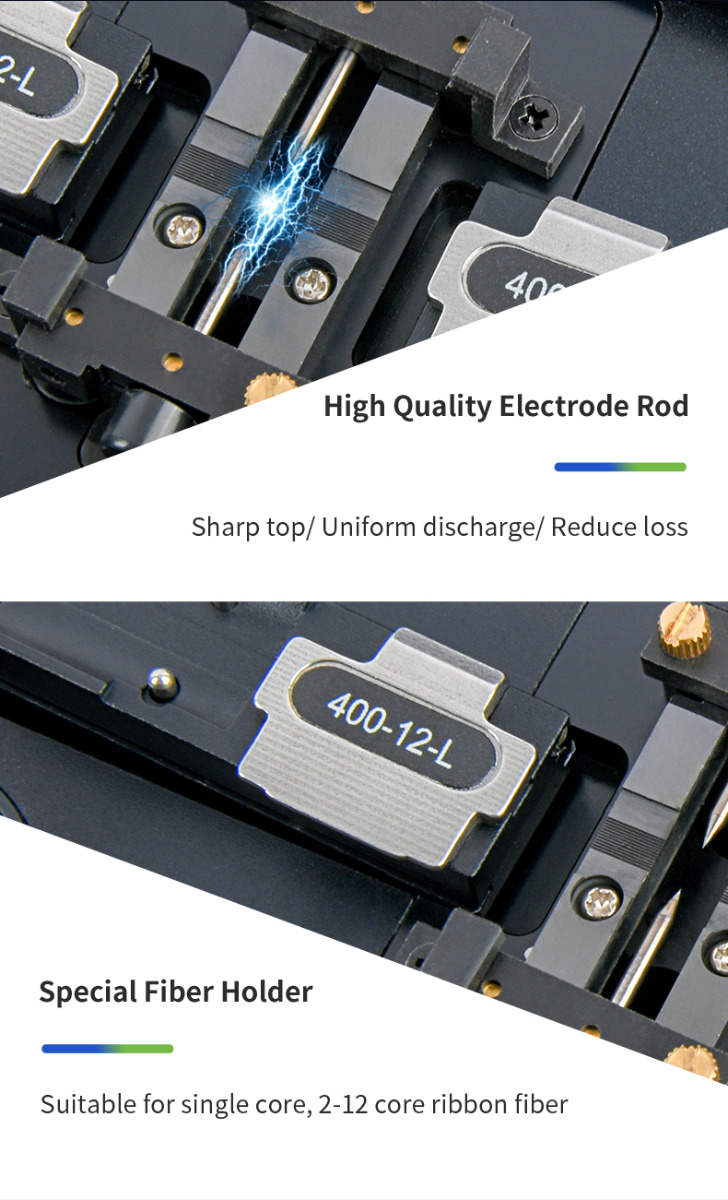

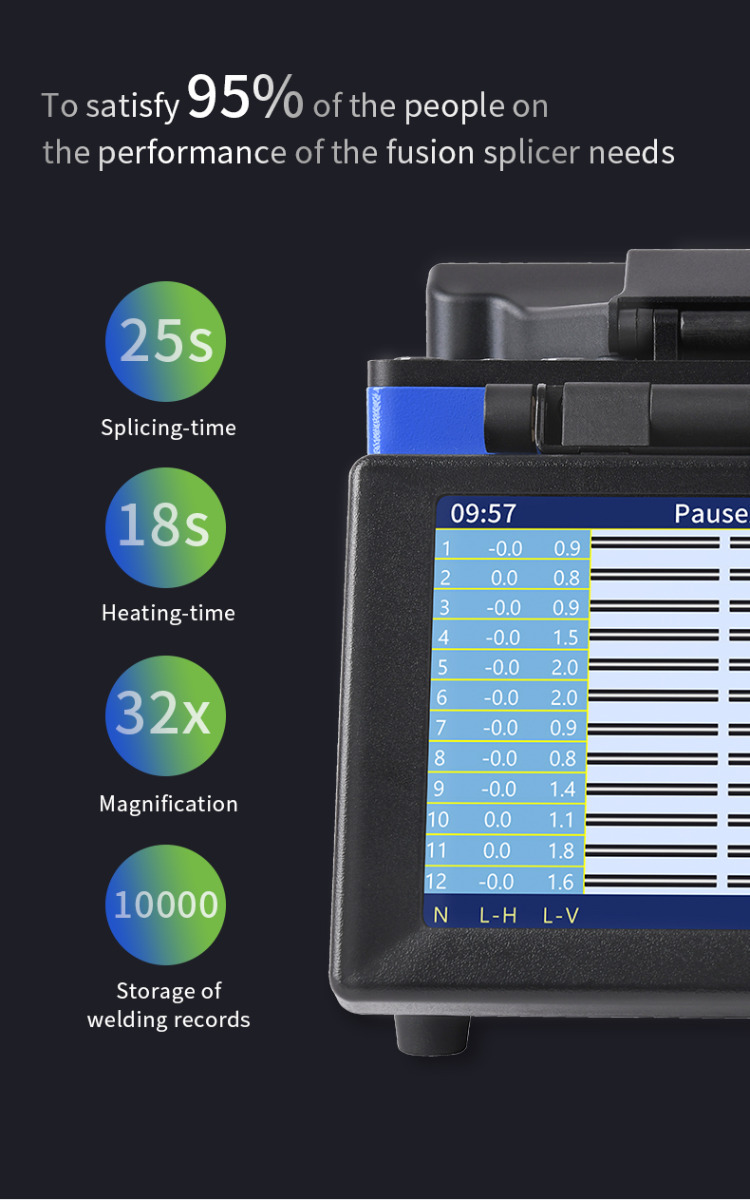

Ribbon Fiber Fusion Splicer KL-400E with precise cladding alignment technology, is one of the reliable fusion splicers on the market. 3-in-1 fiber holder ; 5.7in 640x480 color LCD monitor, which is more convenient for users; 7800mAh Lithium battery, 180 cycles splicing & heating; Fast 25s splicing and 18s heating, improve efficiency; Adopt air pressure automatic compensation technology to adapt to different altitudes, to ensure well operation in a variety of harsh environments; Combining these advanced performance and technologies, KL-400E ribbon fusion splicer will provide customer a better operating experience.

Features:

• Fixed V-groove (Clad to Clad)

• Single X or Y view and X & Y view simultaneously;

• Auto check quality of cleaved end face;

• Display fiber offset angle

• Display fiber cleaved angle

• 5.7 inch  color LCD monitor with clear digital image display;

• USB interface

• Software upgrade via USB interface

Specifications:

Applicable fibers

SM(G652) MM(G651) DS(G653) NZDS(G655) BIF(657)

Fiber diameter

Single:Cladding;Diameter:125μm;

Coating diameter:250μm,900um;

Ribbon:Cladding diameter:125μm;

Coating diameter:0.25-0.4mm

Fiber count

Single 2 4 5 6 8 10 12

Fiber cleaved length

11-13mm

Actual average splice loss

0.05dB(SM),0.02dB(MM),0.08dB(DS),0.08dB(NZDS)

Typical splicing time

Typical 12 sec (standard SM fiber)

Return loss

>60dB

Fusion Program

40

Tube heating program

40

Tube typical heating time

Typical 30 sec

Protection sleeve length

60mm, 40mm and other length

Storage of splice result

10000 results, 100 parameter per result

Fiber image magnification

30X

Battery capacity

Typical 200 cycles (splice/tube heat with inner Li-battery)

Monitor

5.7 inch TFT color LCD monitor and 2 CMOS camera

Tension test

2N

Electrode life

2500

Terminal

USB 2.0.

Power supply

AC 100-240V with AC adapter 13.5v

Operating condition

0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s

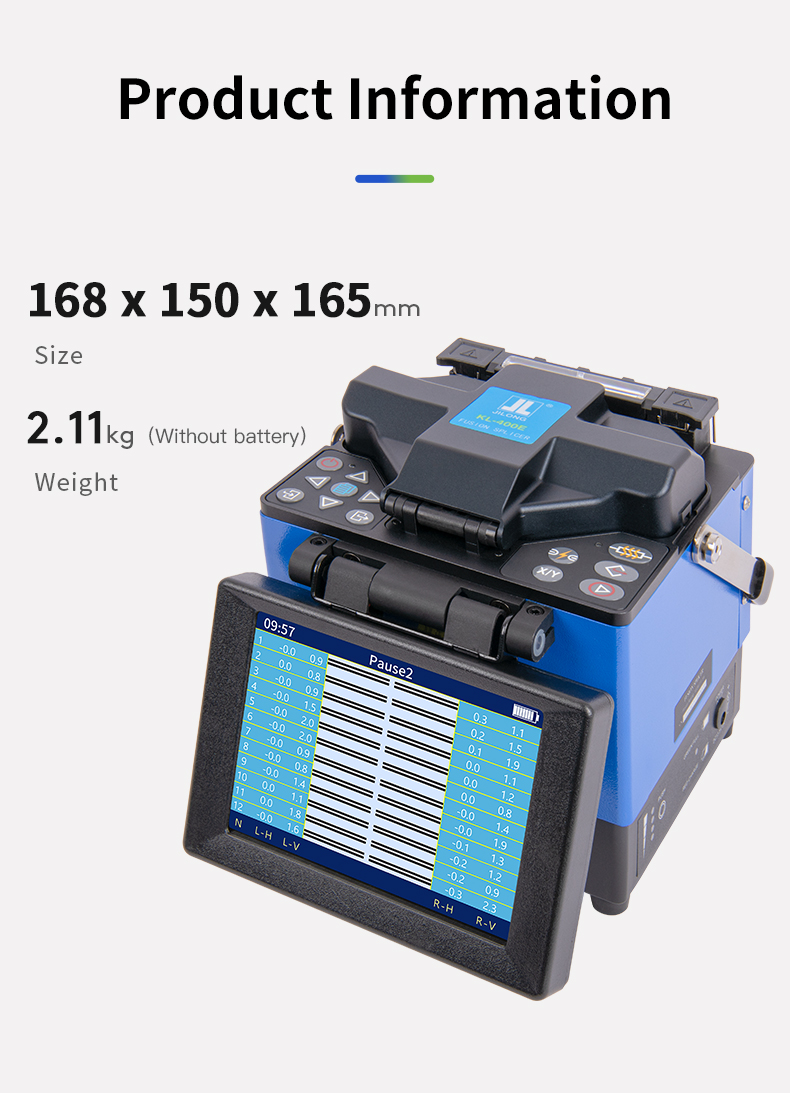

Dimension

168mm(L)×150mm(W)×165mm(H)

Weight

2.0Kg excluding battery,2.5Kg including battery

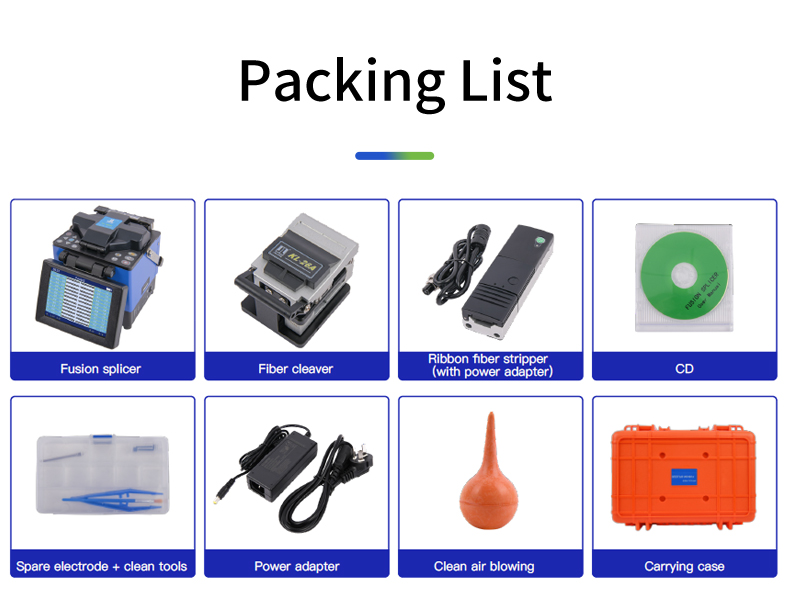

Package Included:

Number

Name

Quantity

1

KL-400E fusion splicer with battery pack

1 pc

2

Fiber Cleaver

1 pc

3

Power suppy cord

1 pc

4

Spare electrode

1 pair

5

Cooling tray

1 pc

6

Operating CD manual

1 pc

7

Fiber Optic Stripper

1 pc

8

Carrying case with worktable CC-81

1 pc

9

Hand strap

1 pc
