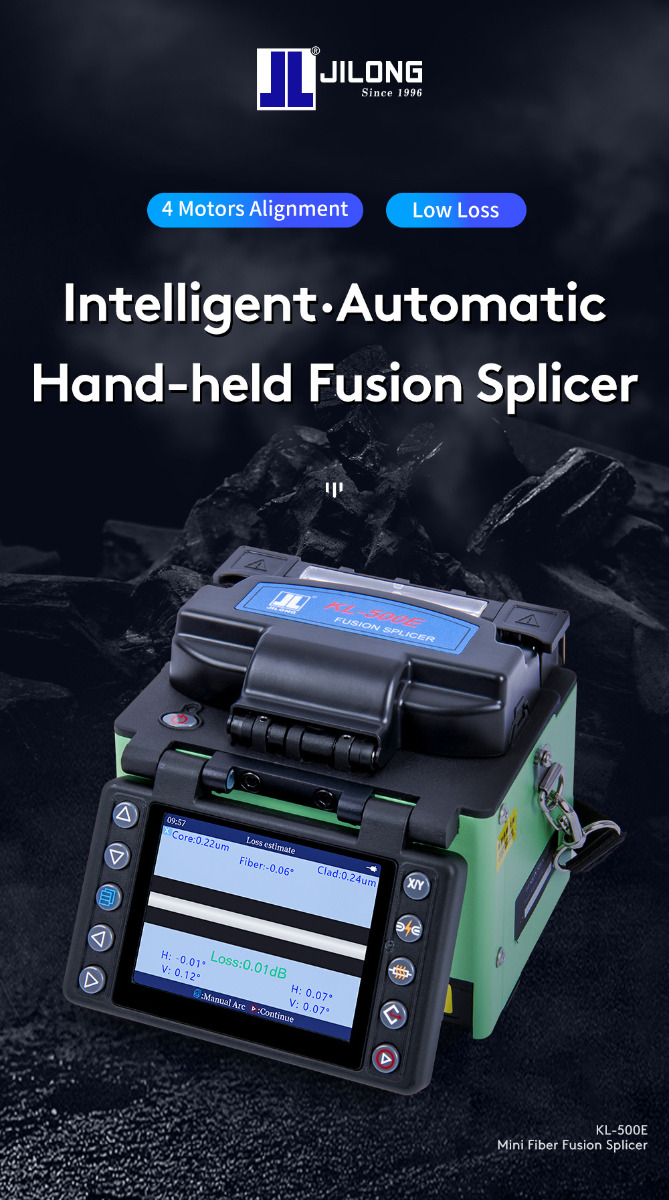

JILONG KL-500E Mini Fiber Fusion Splicer
Features:

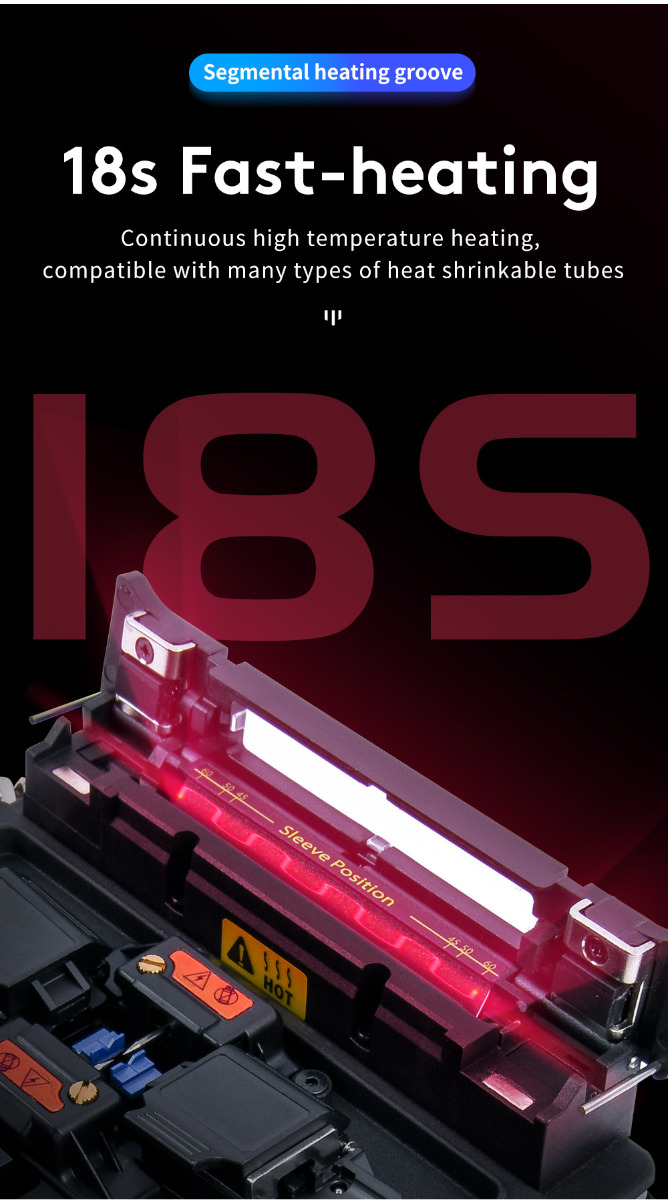

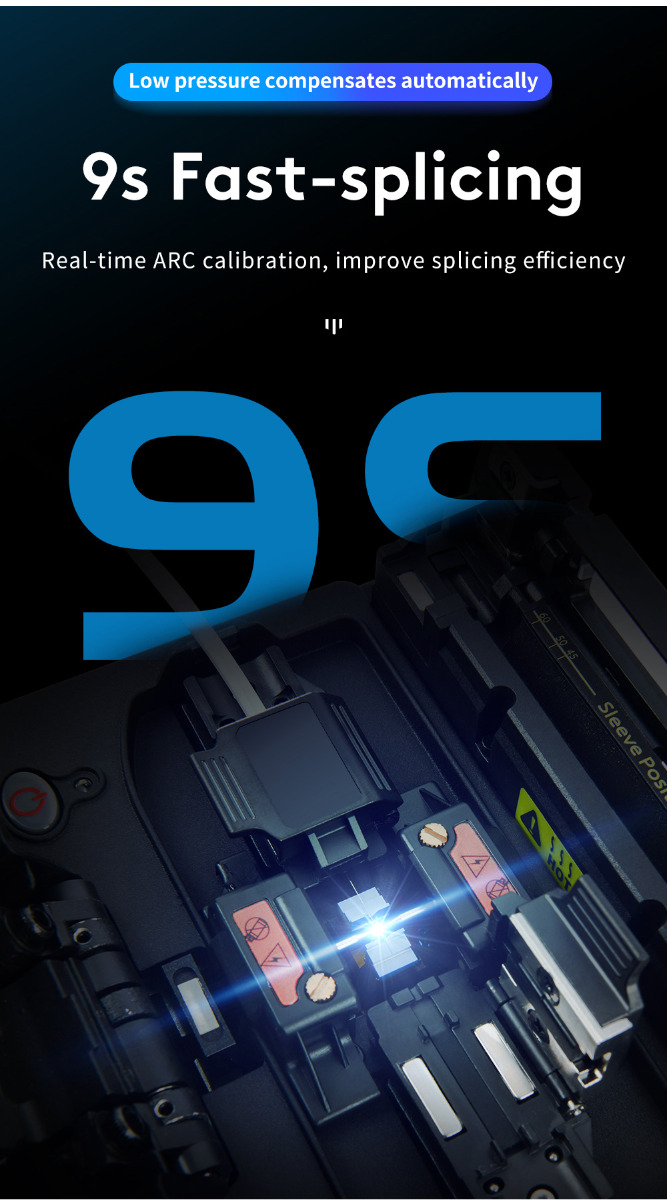

• Fast-splicing 9s; Fast-heating 18s
• Average splicing loss 0.01dB

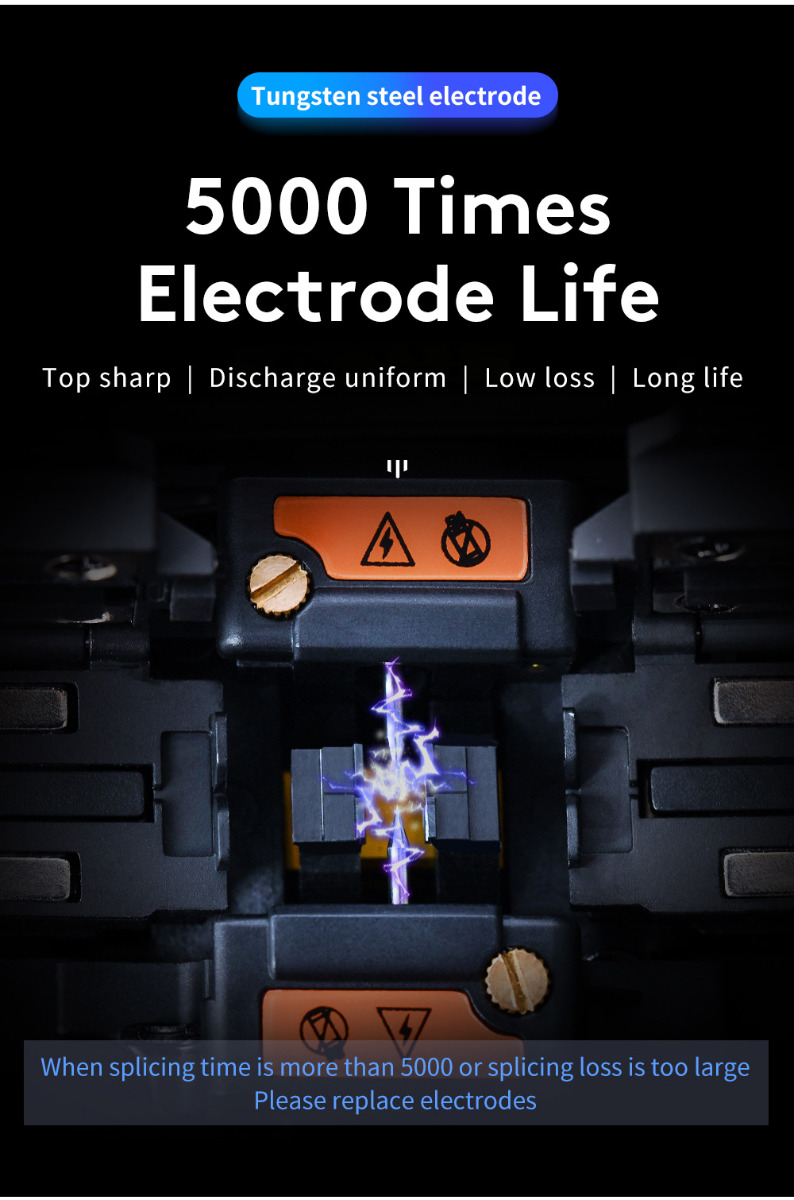

• Electrode life: 5000 times

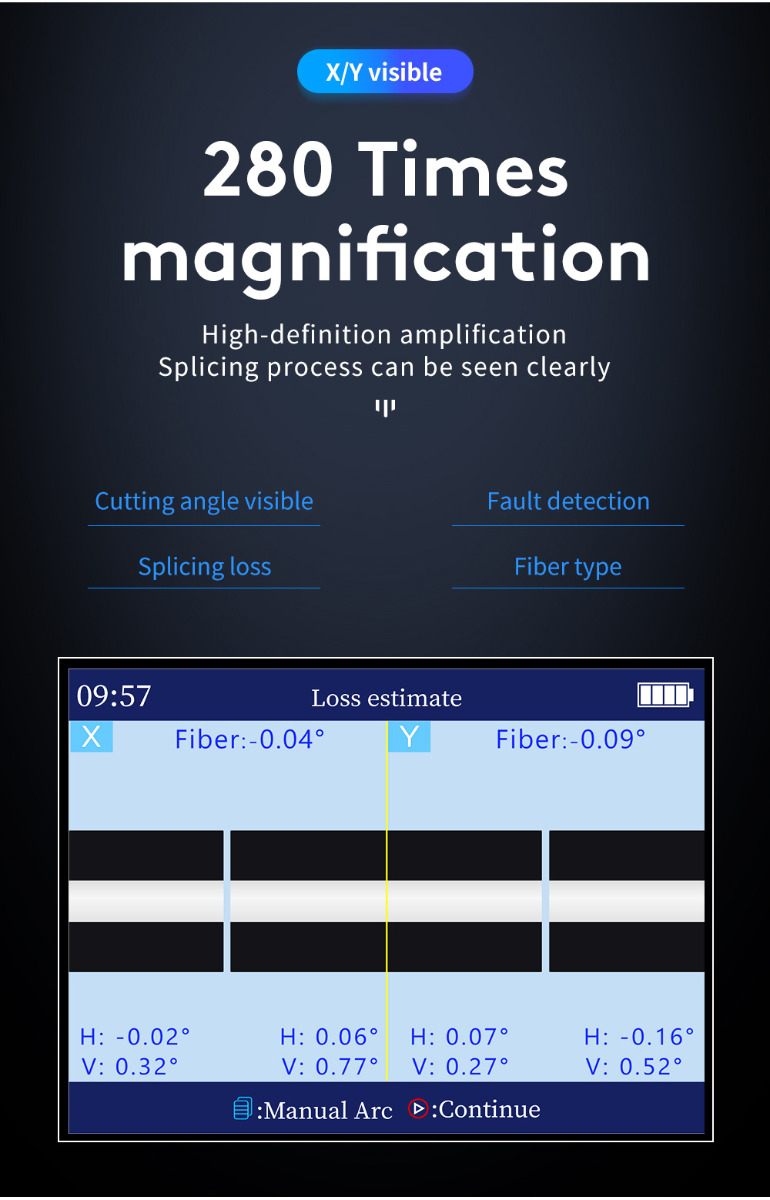

• 280X Magnification.The fiber core is clearly visible

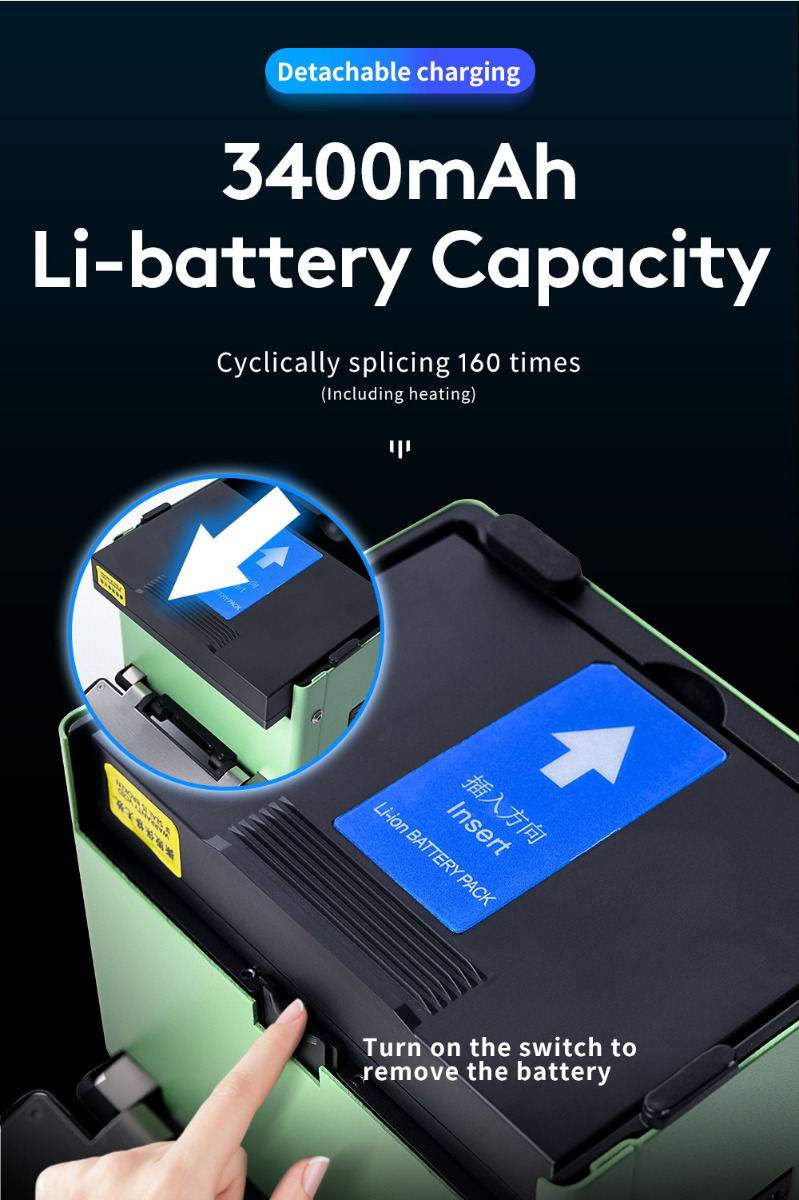

• 3400mAh Battery capacity, 160 splice & heat cycles
• 5 Inch color screen
• 4 Motors aligning

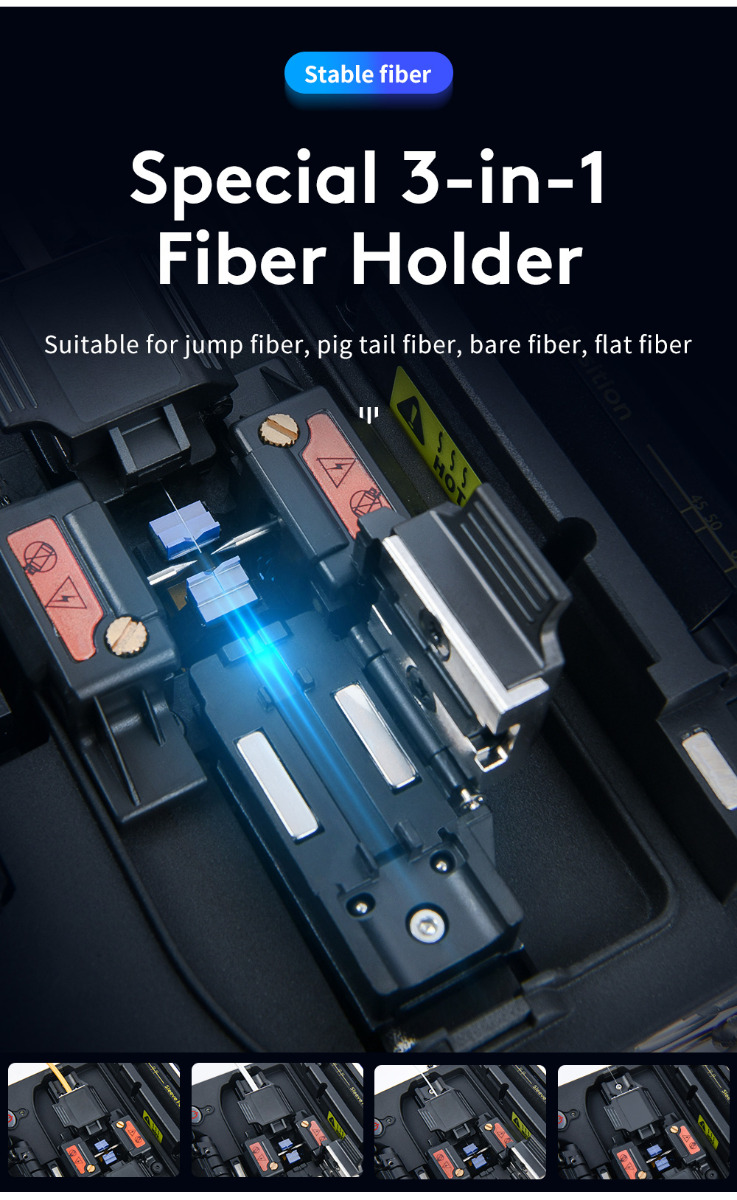

• 3-in-1 Fiber holder, suitable for Bare fiber/ Pigtail fiber/Jump fiber/Flat fiber
• Saved 10000 sets of welding results, 100 sets of image

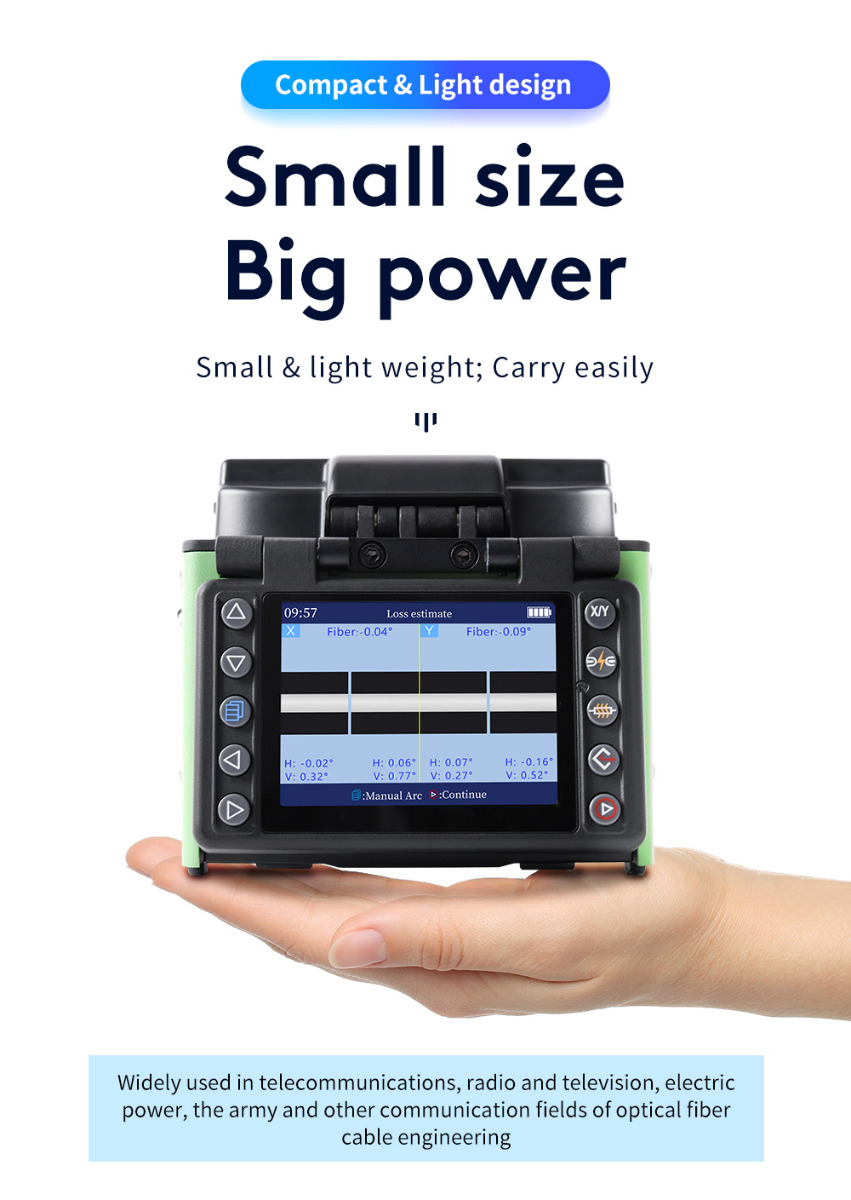

• Compact, light weight & faster
Description:
KL-500E adopts 3.5-inch color display, high-speed image processing technology and special precision positioning technology, fast splicing, 9S automatic completion. Hand-held model, small size, light weight, easy to carry; Simple operation, fast splicing, low loss, real-time automatic discharge correction, stable welding heating; Deep recessed windshield design, normal work under 15m/s strong wind; Low pressure self-compensation function improves the splicing performance, and is widely used in the optical fiber and cable engineering and maintenance of telecommunications, radio and television, electric power, military and other communication fields.
Features:
• Fast-splicing 9s; Fast-heating 18s
• Average splicing loss 0.01dB
• Electrode life: 5000 times
• 280X Magnification.The fiber core is clearly visible
• 3400mAh Battery capacity, 160 splice & heat cycles
• 5 Inch color screen
• 4 Motors aligning
• 3-in-1 Fiber holder, suitable for Bare fiber/ Pigtail fiber/Jump fiber/Flat fiber
• Saved 10000 sets of welding results, 100 sets of image
• Compact, light weight & faster
Specifications:
Fiber type | SM (G652) / MM (G651) / DS (G653) / NZDS (G655) / BIF (G657) |
Fiber count | Single |
Fiber aligning method | Meticulous; Core; Clad; Manual |
Splicing mode | Auto; Calibrate; Normal; Special |
Average splicing loss | SM: 0.02dB MM: 0.01dB DS / NZDS: 0.04dB |
Typical splicing time | Typical: 9s (SM) |
Typical heating time | Typical: 18s |
Splicing program | 100 (User mode) 53 (Factory mode) |
Heating program | 40 (User mode) 11 (Factory mode) |
Heating control mode | Auto; Manual |
Fusion splicing record | 10000 Groups, each splicing results include 26 groups parameters and 100 sets of latest images |
Tension test | 1.96 ~ 2.25N |
External port | USB |
Electrode life | 5000 Times |
Fiber image magnification | 280X / 140X |

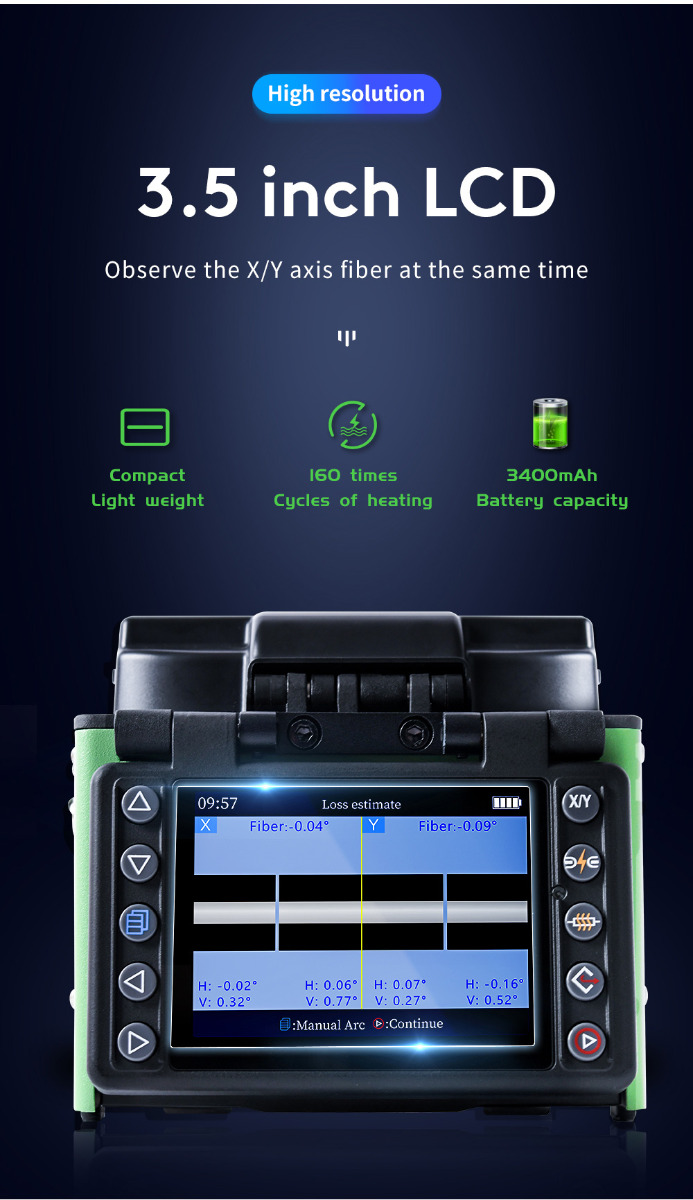

Graphical display | 3.5 Inch color LCD |
Splicing & Heating | 160 Times (typical) |
Battery capacity | 3400mAH |
Charge mode | Internal charge |
Power supply | AC 100-240V AC adapter: DC 13.5V |
Working environment | Elevation: 0 ~ 5000m |
Temp: -10 ~ 50℃ | |
The maximum wind speed: 15m/s | |
Size | 125 x 105 x 113(mm) |
Weight | 1.15 kg (without battery) 1.36 kg (with battery) |

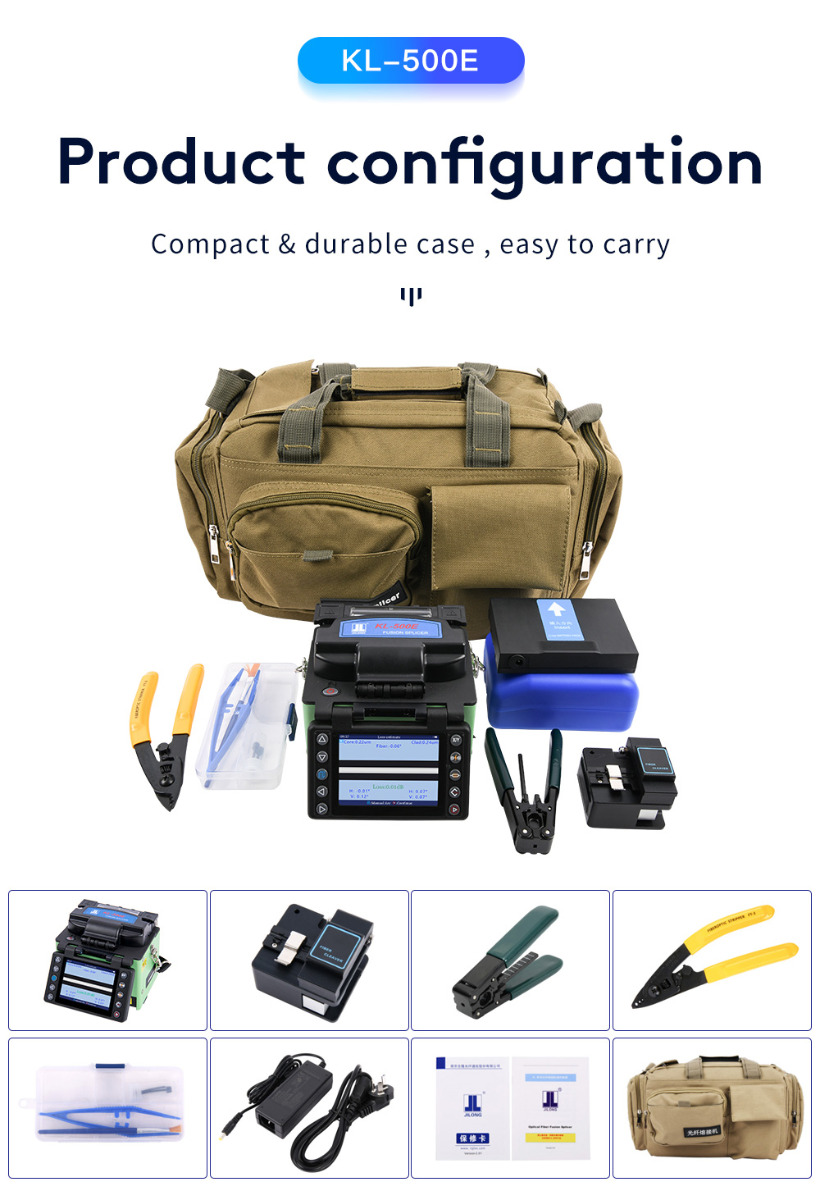

Package Included:
Fusion splicer | KL-500E |
Fiber optic cleaver | 1PC |
Optical fiber stripper | 1PC |
3-hole Miller stripper | 1PC |
Spare electrode | 1PC |
Clean box | 1PC |
Power charger | 1PC |
Warranty card | 1PC |
Specification | 1PC |
Carry bag | 1PC |
